Who Vestil Is, and Why We Carry Them

Vestil Manufacturing is a fourth-generation family-owned company in Angola, Indiana. It started in 1957 in Albion, Michigan, when the owners of T & S Equipment set up a new company to build truck and rail dock equipment. In 1982 it moved to a larger building in Angola. Today Vestil builds on a campus of five plants, all within a quarter mile of each other, with over 1,000,000 square feet of manufacturing space.

The catalog is huge. Vestil counts 15,383 active SKUs in 1,292 product families across 13 product categories, from loading dock equipment and overhead lifting to drum handling, carts, ladders and casters. The company says its designs aim to “increase productivity, improve workplace ergonomics, and decrease worker injury.” Lift tables are one part of that, filed under Vestil’s Ergonomic Solutions category.

With a catalog that size, the hard part is picking the right model. That is the part we do. B&C lists Vestil’s lift table family on bandcip.com: scissor lift tables, low profile and air tables, mobile lift carts, tilters, carousels and spring load levelers. We size the unit to your load and your station, quote it with freight or local delivery included, and support it after it arrives. If you need something else from the Vestil catalog, we quote that too.

What Actually Sets Vestil Apart

Four things Vestil can point to on its own site and spec pages. No vague durability claims, just how the company builds and ships.

Manufacturing

Built in-house on one Angola campus

Vestil’s five plants sit within a quarter mile of each other in Angola, Indiana. The company lists fiber and tube lasers, more than 80 welding stations plus robotic welders, CNC lathes and mills, press brakes, powder coat lines and paint booths. A “Power-Up” department in Plant 1 installs the electric and hydraulic systems, so the power unit goes on under the same roof as the frame.

Availability

A 48-hour quick ship program

Vestil runs a 48-hour quick ship program on many stocked products. It built a 225,000 square foot fulfillment center in 2018 to extend that program to more of the catalog. Not every model is in stock, so we confirm the real lead time on your quote rather than promise it up front.

Range

One maker for the whole lift table family

Vestil lists 108 EHLT scissor lift table models, 120 UNI lift and tilt models and 21 families of elevating lift carts, plus tilters, carousels and spring load levelers. With that many standard sizes, it is often possible to match your platform, height and power exactly without going custom.

Custom

Custom fabrication with in-house engineering

When a standard model doesn’t fit, Vestil runs a custom fabrication program for lift tables, tilt applications, platforms, drum handling and more. Its engineering team covers mechanical, fluid power, electrical and industrial work. Vestil’s own line for it: “If you can dream it....We can build it.”

Find Your Vestil Product

The Vestil lines we quote most, in one place: 35 series across seven product lines. Every product has a Get Info & Pricing button that carries what you clicked straight into the form at the bottom, so you do not need the model number. Capacities and sizes are as published by Vestil.

Vestil Scissor Lift Tables

A Vestil electric hydraulic scissor lift table raises pallets, parts and work in process to a comfortable working height, so operators stop bending to the floor or reaching overhead. The EHLT series alone runs to 108 models, with single, double, tandem and short-travel versions.

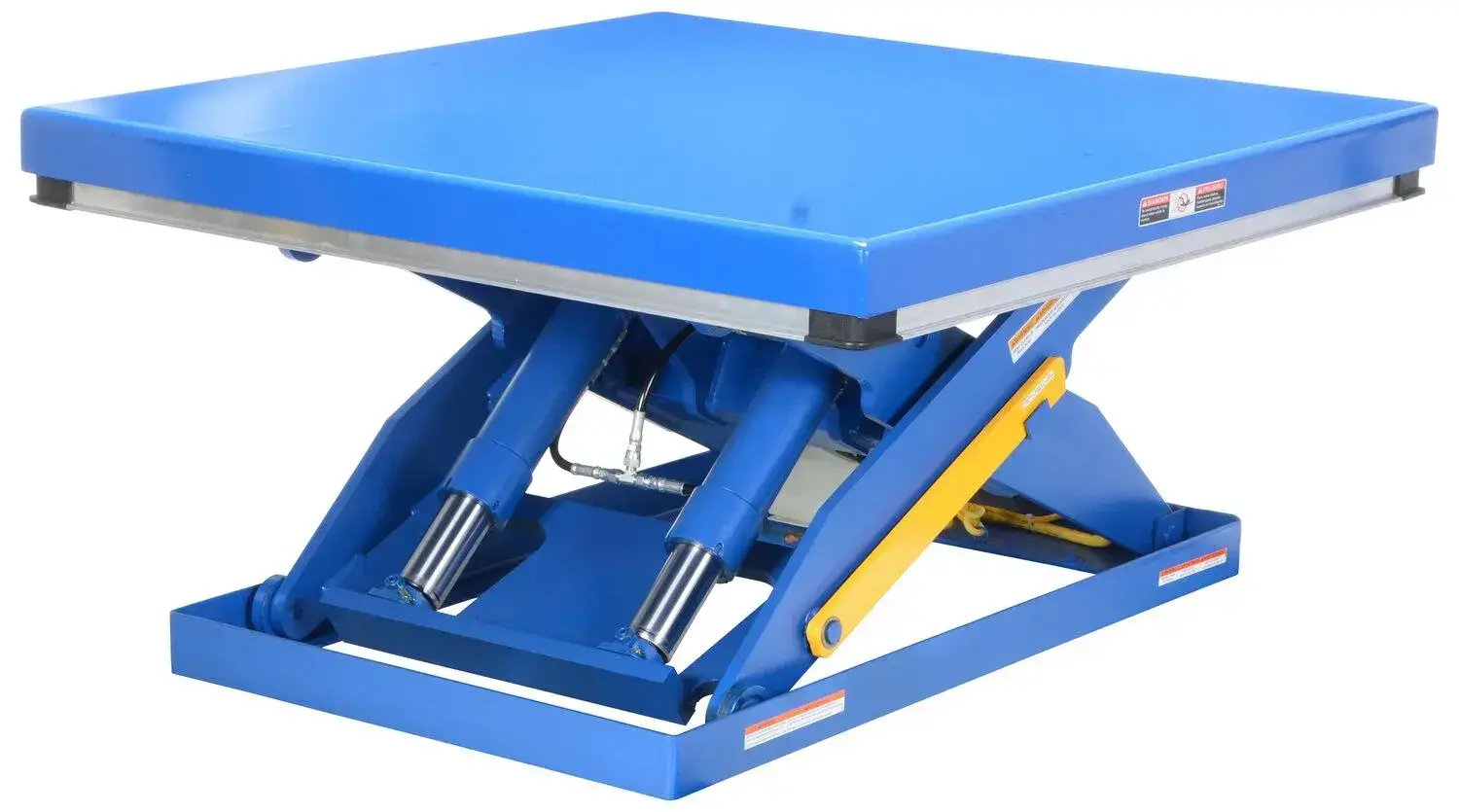

EHLT — Electric Hydraulic

1,000 – 12,000 lbs
33 – 72 in. travel, 108 models

Get Info & Pricing View product page

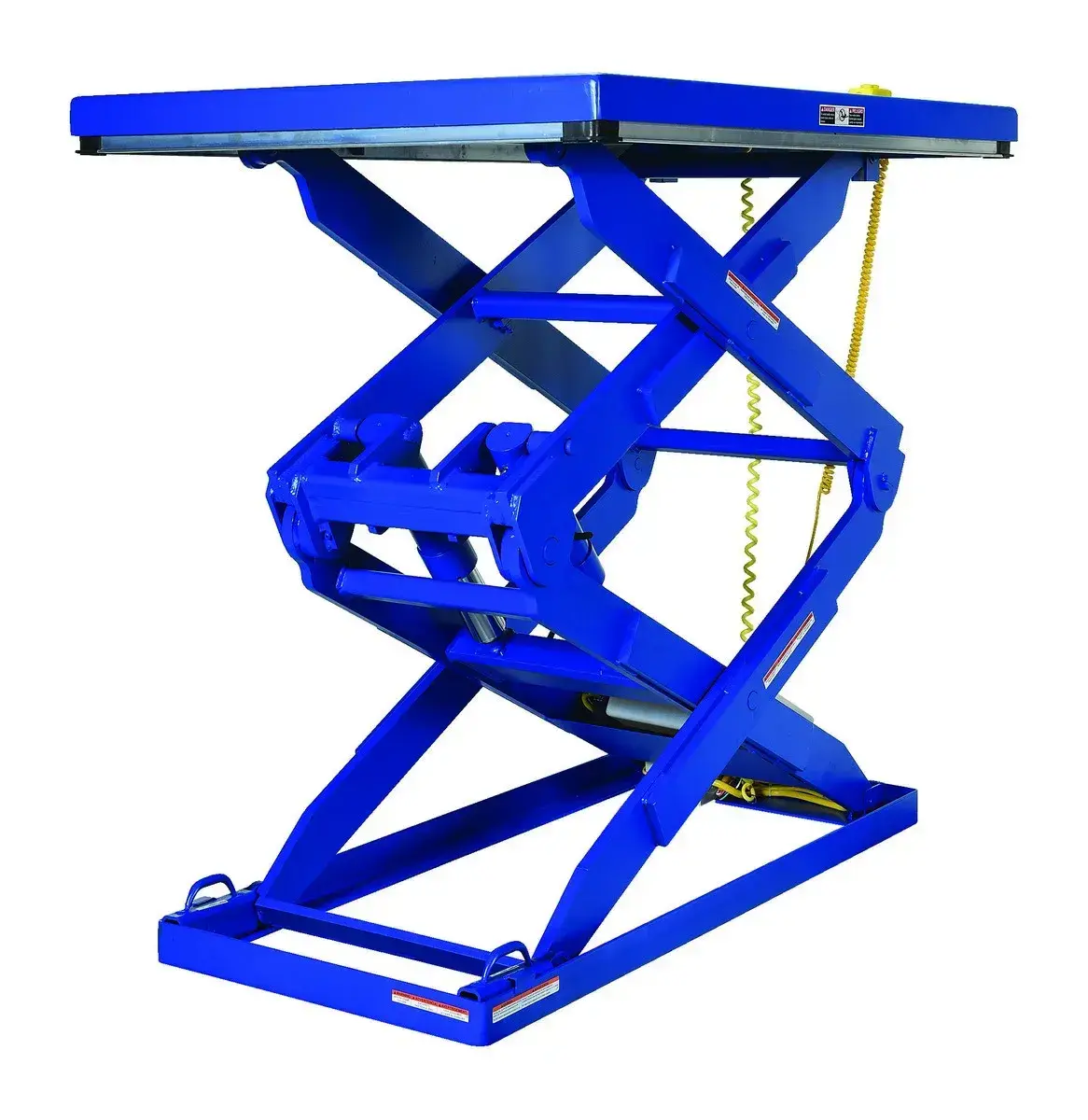

EHLTD — Double Scissor

1,000 – 5,000 lbs
Raises to 70 or 84 in.

Get Info & Pricing View product page

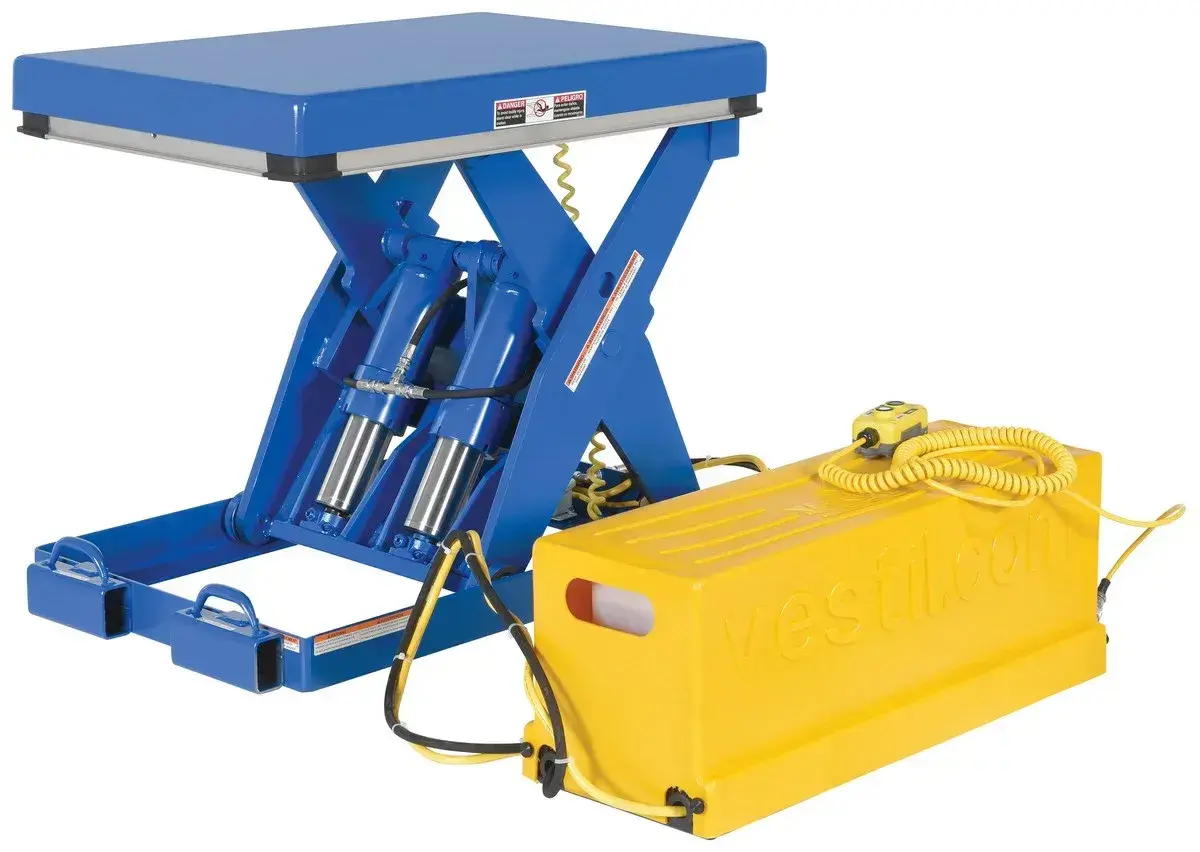

EHLTS / EHLTSD — Shorty

Short-travel scissor tables
Ask us for current specs

Get Info & Pricing View product page

EHLT-TL — Tandem

Tandem scissor lift table
Ask us for current specs

Get Info & Pricing View product page

Vestil EHLT-WS work station scissor lift table

EHLT-WS / WSI — Work Station

Work station scissor lift table
Ask us for current specs

Get Info & Pricing View product page

Standard EHLT tables come with internal velocity fuses, electric toe guards, maintenance props and upper travel limit switches. Power units run from 115V single phase to 460V three phase, so tell us what is available at the station.

Low Profile & Pneumatic Lift Tables

A standard scissor table sits too high for a pallet jack to roll onto. Vestil’s low profile, ground-level and air bag tables fix that: they lower close to the floor so a pallet goes on with a hand truck instead of a fork truck, then rise to working height.

EHLTX — Low Profile

1,000 – 3,500 lbs
Lowers to 3-1/4 in., 35-3/4 in. travel

Get Info & Pricing View product page

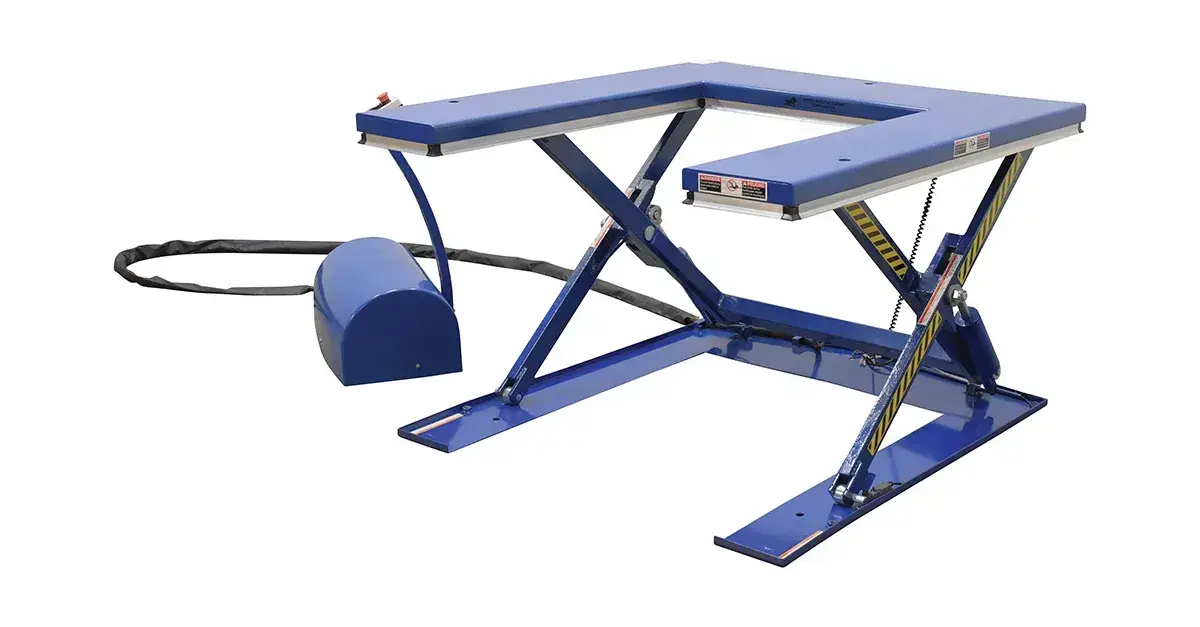

EHU / EHE — U and E Shape

1,200 – 3,000 lbs
Pallet jack rolls straight in

Get Info & Pricing View product page

EHLTG — Ground Lift

2,000 – 4,000 lbs
Loads at floor level, no pit or ramp

Get Info & Pricing View product page

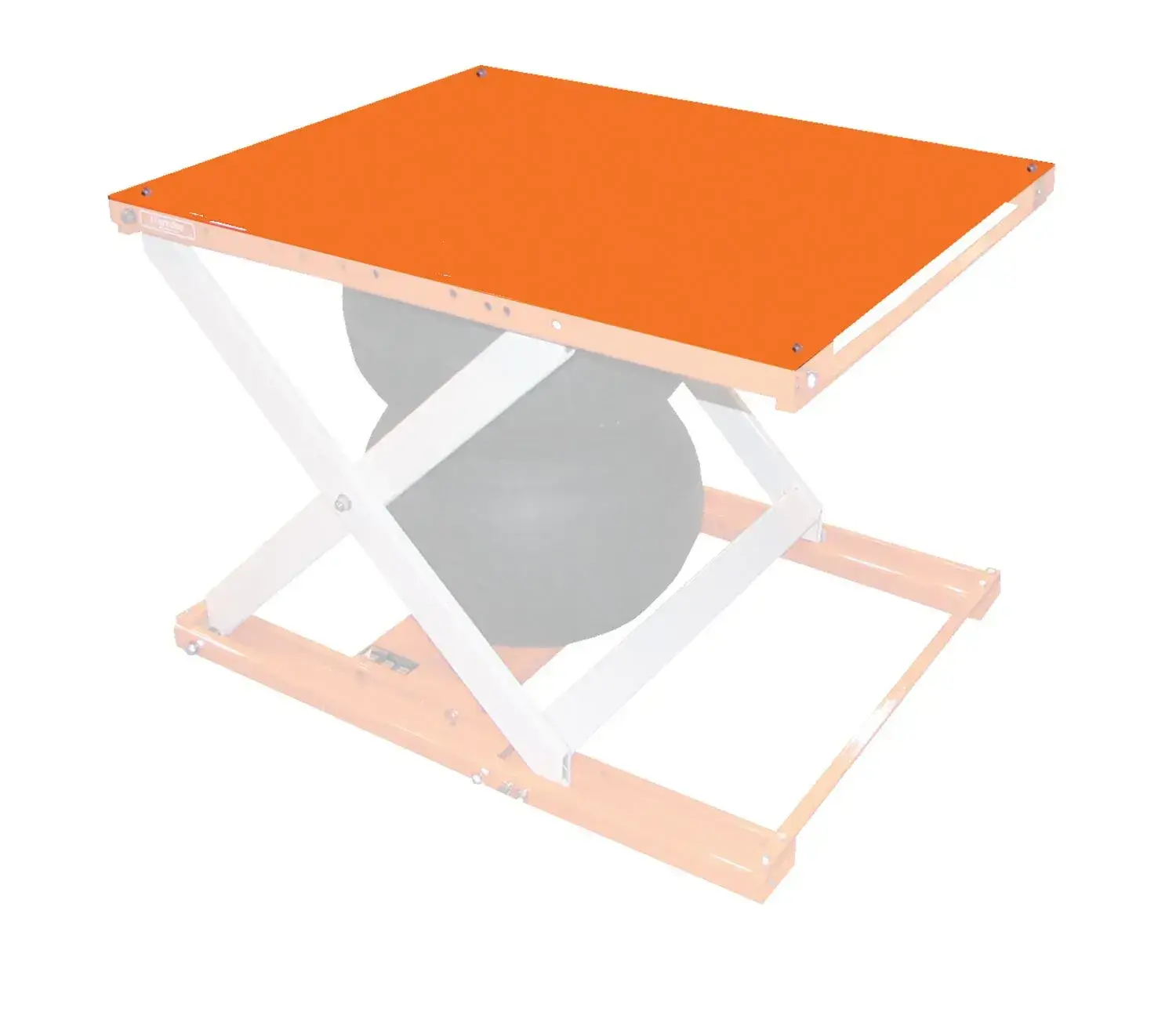

ABLT-H — Air Bag Scissor

1,000 – 4,000 lbs
Raises to 32 in. on 80–100 psi shop air

Get Info & Pricing View product page

The EHU is U-shaped and the EHE is E-shaped, so the forks of a pallet jack slide around the base. Vestil also offers the EHU in stainless steel for clean areas.

Vestil Mobile Lift Carts & Elevating Carts

A Vestil lift cart is a scissor lift table on casters. It carries parts between stations and raises them to the height of the bench, rack or machine at the other end. Vestil lists 21 families of elevating carts, powered by a foot pump, a 12V battery or shop air.

Vestil hydraulic foot pump elevating cart

Hydraulic Elevating Cart — Foot Pump

220 – 4,000 lbs
Single and double scissor, steel or aluminum

Get Info & Pricing View product page

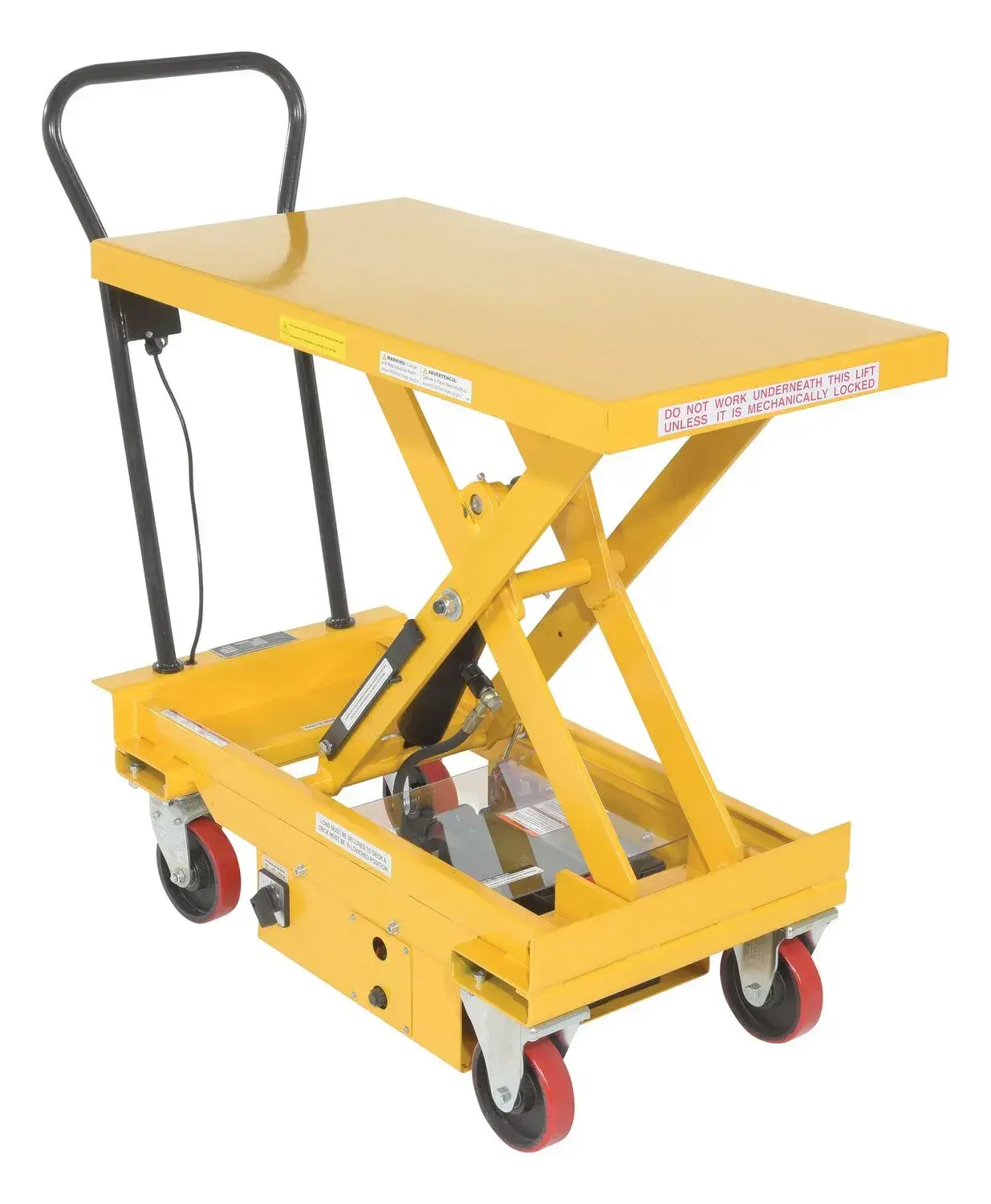

CART-DC — DC Powered Elevating Cart

500 – 2,500 lbs
12V battery, onboard charger

Get Info & Pricing View product page

DC & Manual Scissor Cart

Battery or hand-pump lift
Ask us for current specs

Get Info & Pricing View product page

Air Hydraulic Scissor Lift Cart

Air hydraulic lift
Ask us for current specs

Get Info & Pricing View product page

Low Profile Scissor Lift Cart

Low profile elevating cart
Ask us for current specs

Get Info & Pricing View product page

SSSC — Stainless Steel Scissor Cart

Stainless steel construction
For food and clean areas

Get Info & Pricing View product page

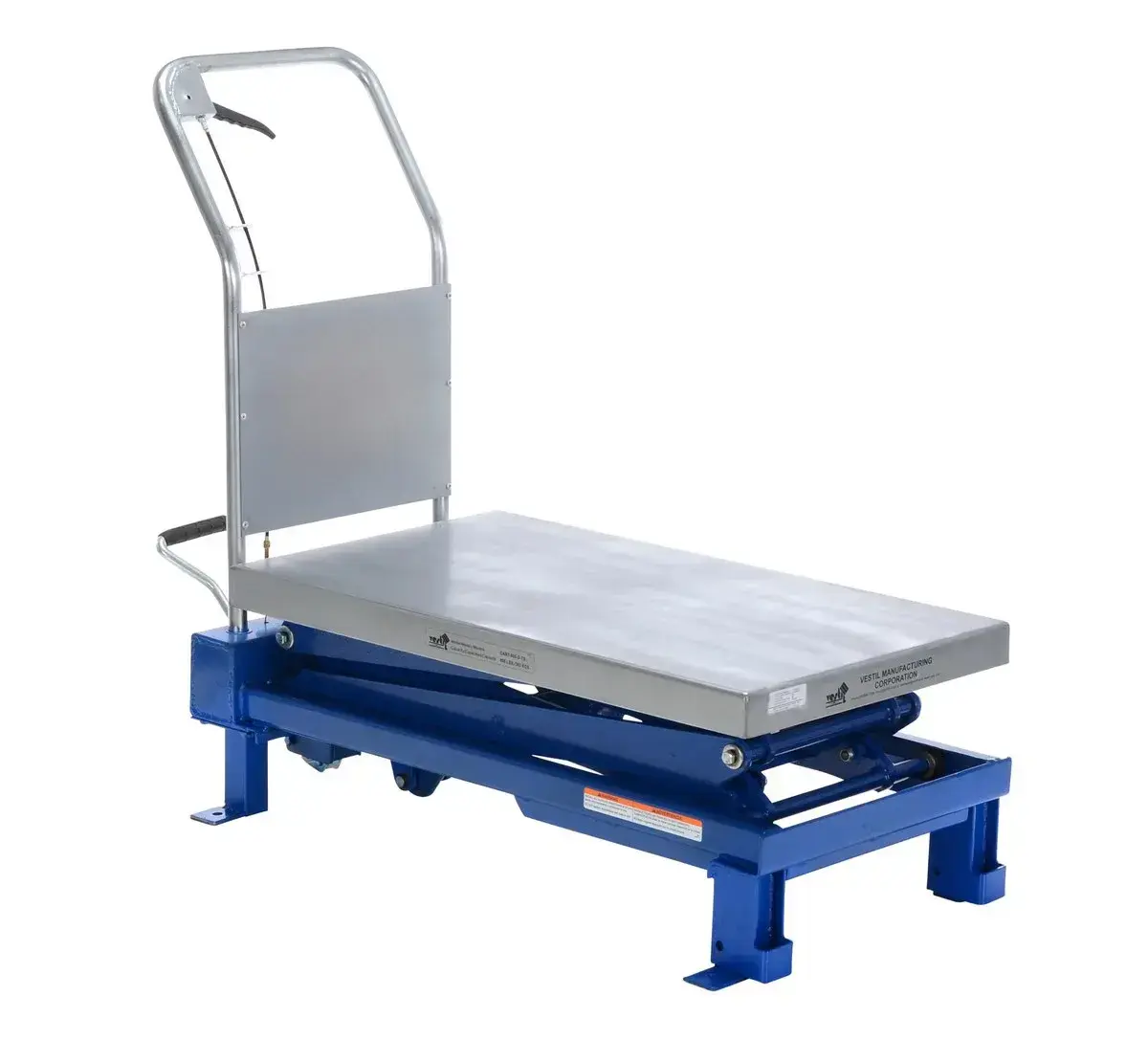

Vestil SCTAB foot pump or powered scissor lift table

SCTAB — Foot Pump, DC or AC Table

Foot pump, DC or AC power
Ask us for current specs

Get Info & Pricing View product page

Vestil lift and tilt cart with sequence select

Lift & Tilt Cart — Sequence Select

Lifts, then tilts
Ask us for current specs

Get Info & Pricing View product page

Vestil Tilters & Lift and Tilt Tables

A tilter angles a pallet or bin toward the worker, so they can reach the far side and the bottom layer without leaning in. A lift and tilt table raises the load first and then tilts it, which puts the work at bench height and at a usable angle at the same time.

Vestil Tilt Master TM portable pallet tilter

Tilt Master TM / TMS — Portable

2,000 / 4,000 / 6,000 lbs
Full 90° tilt, on casters

Get Info & Pricing View product page

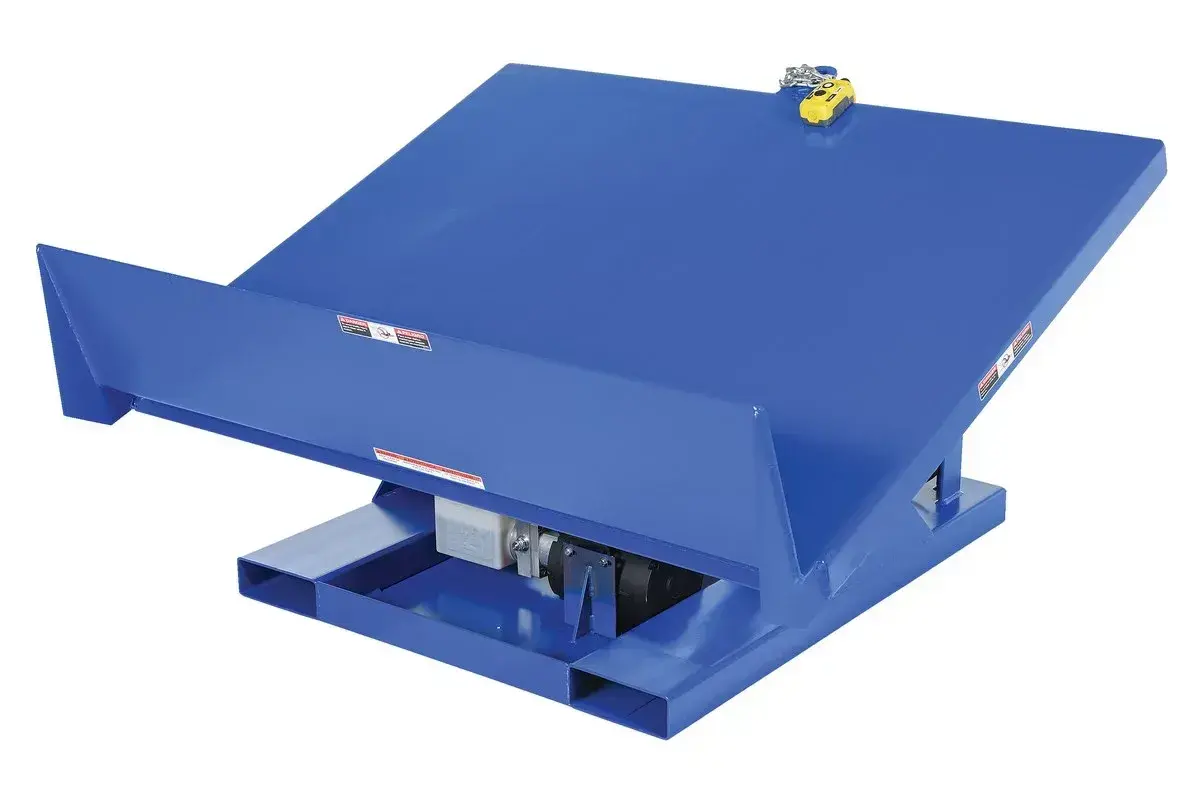

EM1 — Efficiency Master

2,000 – 6,000 lbs
45° or 90° tilt, 24 in. deck height

Get Info & Pricing View product page

Vestil EHLTT electric hydraulic lift and tilt scissor table

EHLTT — Lift & Tilt Scissor

1,000 – 5,000 lbs
Lifts, then tilts 45° or 90°

Get Info & Pricing View product page

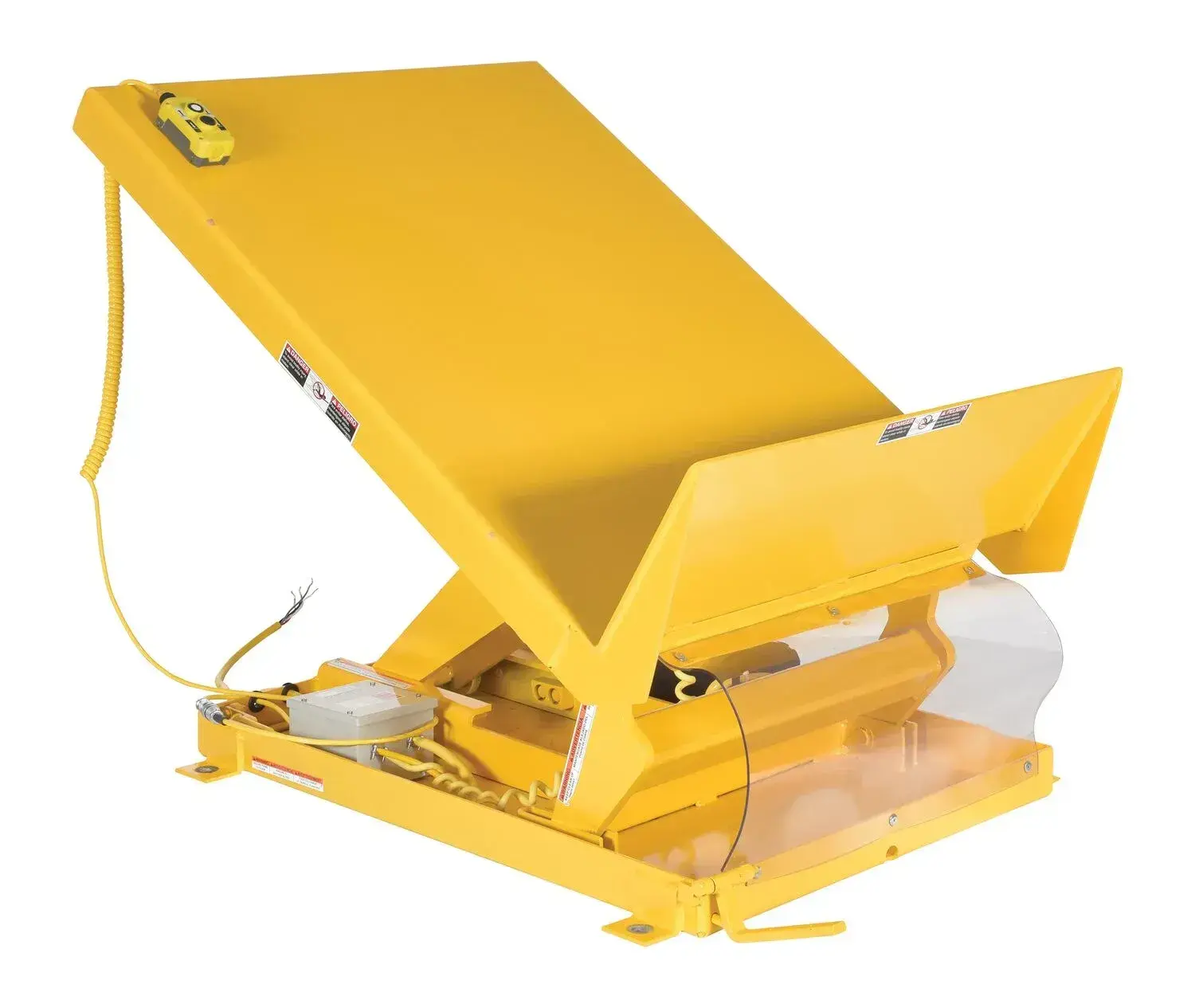

UNI — Uni-Tilt

2,000 – 6,000 lbs
Tilts to 40°, 120 models

Get Info & Pricing View product page

Vestil ULTT lift and tilt workstation table

ULTT — Lift & Tilt Workstation

2,000 / 4,000 / 6,000 lbs
Tilts up to 44° while lifting

Get Info & Pricing View product page

ZLTT — Zero Lift & Tilt

2,000 – 4,000 lbs
Tilts to 45°, loads at floor level

Get Info & Pricing View product page

The Tilt Master runs on AC, 12V DC or air/oil power and rolls to wherever the pallet is. The ZLTT loads at ground level with no pit, so a pallet jack can set the load on it directly.

Vestil Turntables & Carousels

A carousel or turntable spins the load so the worker can reach every side of a pallet from one spot. On a packing, wrapping or assembly station that means less walking around the load and less reaching across it. Vestil builds manual, powered and lift-and-rotate versions.

CA — Steel Manual Carousel

2,000 / 4,000 / 6,000 lbs
18 – 72 in. diameter, 2 in. high

Get Info & Pricing View product page

LP-4000T — Thin Spin

4,000 lbs
7/8 in. high, pallet jack rolls on

Get Info & Pricing View product page

Vestil HST powered lift table with manual rotation

HST — Lift with Manual Rotation

4,000 lbs
12-3/4 to 28 in. height, round top

Get Info & Pricing View product page

Vestil CA-KP heavy-duty king pin carousel

CA-KP — King Pin Carousel

Heavy-duty king pin carousel
Ask us for current specs

Get Info & Pricing View product page

STPC — Stand Alone Powered

Powered carousel
Ask us for current specs

Get Info & Pricing View product page

POW-CAR — Low Profile Powered

Low profile powered carousel
Ask us for current specs

Get Info & Pricing View product page

Already have a lift table in mind? Vestil can factory-install a 45 in. carousel top (the -ROTATE option, up to 4,000 lbs) on EHLT, EHLTD and EHLTX tables with a platform of at least 48 × 48 in.

Spring Load Levelers & Self-Elevating Tables

A spring load leveler keeps the top of a stack at the same height as boxes come off or go on. Springs do the work, so there is no power to run and nobody bends to reach the bottom layer of a pallet.

SST — Spring Scissor Table

400 – 4,500 lbs
Round top turns 360°, 9 to 27-3/4 in.

Get Info & Pricing View product page

Photo coming soon

ETS — Self-Elevating Spring Table

Self-elevating spring table
Ask us for current specs

Get Info & Pricing Browse similar at B&C

Photo coming soon

SCSC — Self-Elevating Lift Cart

Self-elevating lift cart
Ask us for current specs

Get Info & Pricing Browse similar at B&C

Vestil Loading Dock Equipment

Vestil started out building truck and rail dock equipment in 1957, and the loading dock is still its first product category. We don’t list these on the site, but we quote them. Send us your dock height, the trucks you receive and the heaviest load crossing the dock.

Photo coming soon

EH — Electric Hydraulic Dock Levelers

20,000 – 50,000 lbs
6 or 7 ft wide, 12 in. above and below dock

Get Info & Pricing Call for a quote: (888) 276-3386

Photo coming soon

Mechanical & Edge-of-Dock Levelers

RR mechanical, Edge-O-Dock, truck-actuated
Ask us for current specs

Get Info & Pricing Call for a quote: (888) 276-3386

Photo coming soon

WL-100 — Truck Scissor Dock Lift

4 – 12 ft platform widths, 65 models
Ground to trailer bed, no dock needed

Get Info & Pricing Call for a quote: (888) 276-3386

Vestil also builds dumpers, gantry and jib cranes, drum handling, fork truck attachments, carts, ladders, storage and casters. Vestil makes thousands of products; if you don’t see it here, ask us for a quote.

Mobile Lift Cart vs. Stationary Scissor Lift Table: Which One Do You Need?

Vestil makes both, and they solve different problems. A cart moves the load and lifts it. A stationary table stays put and lifts heavier loads, higher, all day.

	Mobile Lift Cart	Stationary Scissor Lift Table
Vestil series	Foot pump CART, CART-DC, air hydraulic carts	EHLT, EHLTD, EHLTX
Published capacity	Foot pump 220 – 4,000 lbs; DC 500 – 2,500 lbs	EHLT 1,000 – 12,000 lbs
Platform	Up to about 42 × 42 in. on DC carts	Up to 72 × 144 in. on EHLT
Raised height	Varies by model; ask us	EHLT 43 – 82 in.; EHLTD up to 84 in.
Power	Foot pump, 12V battery with onboard charger, or shop air	Hard-wired power unit, 115V single phase to 460V three phase
Pick it when	Parts move between stations, or for order picking at low to mid weights	A fixed work cell, heavy pallets, or a lot of lifts per shift

Not sure which way to go? Tell us what you are moving, how far, and how often. That is usually enough to point you to one or the other.

Warranty Terms

Vestil sets its warranty per product family, not per product line. Most electric hydraulic lift tables carry a 1-year limited warranty on dynamic components (motors, pumps, cylinders, controls), with 90 days on wear parts like bearings, hoses, wheels and seals. Some air, manual and carousel products carry 90 days. These are the terms Vestil states on its product pages.

Product group	Stated warranty
EHLT electric hydraulic scissor tables	1 year limited
EHLTX low profile tables	1 year limited
EHLTG ground lift tables	1 year limited (hand controls 30 days)
EHLTT lift & tilt tables	1 year limited on most models
SST spring scissor tables	1 year limited
ABLT-H air bag tables	90 days limited (1 year on some platform configurations)
CA steel manual carousels	90 days limited
-ROTATE built-in carousel tops	90 days on most; 1 year on EHLTD-ROTATE
WL-100 truck dock lifts	90 days on most components; 30 days on hose and heater options
EH dock levelers	30 days to 1 year, depending on component

The warranty period starts when Vestil or the distributor ships the unit. Labor and freight are not covered, and the warranty is void for misuse, poor maintenance, corrosive environments, collisions or unauthorized changes. Ask us to confirm the exact terms on Tilt Master, EM1, UNI, ULTT, ZLTT, EHLTD, the elevating carts, HST and Thin Spin before you order; we’ll put the warranty on your quote. Claims need the invoice showing the ship date, so call us first and we will start the claim.

Where Vestil Equipment Goes to Work

Vestil equipment shows up anywhere a load has to be raised, tilted, turned or moved, and a person would otherwise do it by bending, reaching or carrying.

Manufacturing & AssemblyLift and tilt tables at work cells, machine feeding and inspection stations

Warehousing & DistributionGround lifts and low profile tables for pallet jack loading, carts for order picking

Packaging & ShippingCarousels, spring load levelers and tilters for palletizing and depalletizing

Automotive & AerospaceElevating carts for parts transport, scissor tables at assembly stations

Food ProductionStainless steel carts and stainless options for clean areas

Maintenance & Machine ShopsLift tables for dies, fixtures and heavy parts at the machine

What We Need From You to Quote a Vestil Unit

With 1,292 Vestil product families, the model number comes last. Two jobs can need the same capacity and end up on very different machines because of loading height, tilt, or the power at the station. Here is the short list that gets you a real price.

What we ask	Why it changes the machine
Load weight and footprint	Sets the capacity and platform size. Tell us if the load is concentrated in one spot; Vestil rates tables on a uniform load
Lowered height	Is a pallet jack rolling on? That decides standard EHLT vs. low profile EHLTX, EHU/EHE, ground lift EHLTG or ZLTT, or the Thin Spin
Raised or working height	Single scissor vs. double scissor (EHLTD reaches 70 – 84 in.) vs. a shorty model
Lift, tilt or rotate	And the tilt angle you need (40°, 44°, 45° or 90°). This picks the family
Stationary or mobile	Fixed table vs. a foot pump, DC or air cart vs. a portable Tilt Master
Power at the station	Voltage and phase, or compressed air (80 – 100 psi for air bag tables). Vestil builds 115V through 460V, 12V DC and air versions
Controls and options	Foot control, hand pedestal, radio remote, skirting, stainless, scale or carousel top. Options change the part number
Ship-to ZIP and unloading	Dock or forklift access at delivery. Every quote includes LTL freight or local delivery

Don’t have all of it? Send what you have. A photo of the station and a description of what you are moving is a fine start, and we will ask about the rest.

Common Questions

Does B&C Industrial sell Vestil lift tables?

Yes. We carry Vestil scissor lift tables, low profile and air tables, mobile lift carts, tilters, carousels and spring load levelers on bandcip.com, and we quote other Vestil products on request. All Vestil equipment is quote-only. Every quote includes LTL freight or local delivery, and we ship to customers nationwide.

Where is Vestil Manufacturing located?

Vestil Manufacturing is at 2999 North Wayne St. in Angola, Indiana. The company was founded in 1957 in Albion, Michigan, and moved to Angola in 1982. It builds in five plants within a quarter mile of each other, with over 1,000,000 square feet of manufacturing space, and is a fourth-generation family-owned business.

What capacity Vestil scissor lift table do I need?

Start with your heaviest load and its footprint. The Vestil EHLT electric hydraulic scissor lift table covers 1,000 to 12,000 lbs on platforms from 24 × 48 in. up to 72 × 144 in. Vestil rates its tables on a uniform load, so if the weight sits in one spot or rolls on and off, tell us and we will size up.

What is a Vestil low profile (EHU or EHE) lift table?

It is an electric lift table with a U-shaped (EHU) or E-shaped (EHE) base, so a pallet jack can slide a pallet straight onto it without a fork truck. The EHE-2 is rated 2,000 lbs and the EHE-3 3,000 lbs, both raising to 33-1/2 in. The EHU also comes in a 1,200 lb stainless steel version.

Do I need a pit for a Vestil ground-level lift table?

No. The EHLTG ground lift and the ZLTT zero lift and tilt load at floor level with no pit or ramp, so a pallet truck can place the load directly. If you want a table that sits on the floor but goes lower than a standard model, the EHLTX low profile lowers to 3-1/4 in.

Should I get a lift cart or a stationary lift table?

If the load has to travel between stations, get a cart. Vestil foot pump carts handle 220 to 4,000 lbs and DC powered carts 500 to 2,500 lbs. If the load stays at one station, is heavy, or is lifted many times a shift, a stationary EHLT table is the better fit.

What is the difference between a Vestil tilter and a lift and tilt table?

A tilter angles the load toward the worker. The Tilt Master is portable and tilts a full 90° at 2,000 to 6,000 lbs. A lift and tilt table raises the load first, then tilts it: the UNI tilts to 40°, the ULTT up to 44° and the ZLTT to 45°. If the load also needs to be at bench height, you want lift and tilt.

What is the warranty on a Vestil lift table?

Most Vestil electric hydraulic lift tables, including the EHLT, EHLTX and EHLTG, carry a 1-year limited warranty on dynamic components such as motors, pumps and cylinders, with 90 days on wear parts. Air bag tables and manual carousels carry 90 days on most models. Labor and freight are not covered. We confirm the exact terms on your quote.

How fast does Vestil ship?

Vestil runs a 48-hour quick ship program on many stocked products, backed by a 225,000 square foot fulfillment center. Not every model or option is stocked, so we confirm the actual lead time when we quote.

Can Vestil build a custom lift table?

Yes. Vestil runs a custom fabrication program for lift tables, tilt applications, platforms and drum handling, with in-house mechanical, fluid power, electrical and industrial engineering. Tell us the size, height or load you can’t find in the standard range and we will ask Vestil to quote it.

Does Vestil make dock levelers and dock lifts?

Yes. Loading dock equipment is where Vestil started in 1957. Its EH electric hydraulic dock levelers are rated 20,000 to 50,000 lbs, and the WL-100 truck scissor dock lift loads semi-trailers at buildings with no dock. We don’t list these on the site, but we quote them. Call us with your dock details.

How much does a Vestil lift table cost?

It depends on capacity, platform size, travel, power and options, so we don’t publish prices. Send us your load, heights and power and we will quote it, with LTL freight or local delivery included.

Get Information or a Quote

You do not need to know the model number. Tell us what you are moving and how high it has to go, and we will work out which Vestil unit fits. If you clicked a product above, it is already filled in below.

You are asking about

Prefer email or phone? Call (888) 276-3386 or email rfq@bandcip.com. Every quote includes LTL freight or local delivery. We ship nationwide from Garrett, Indiana.

More Lift Equipment at B&C

Vestil is one of several lift equipment makers we quote. If your job points somewhere else, these are the other lines and categories to look at.

Lift Tables Scissor Lift Tables Mobile Lift Tables & Carts Upenders & Pallet Tilters Industrial Turntables Advance Lifts Southworth Presto Lifts Autoquip Bishamon Hamaco Lift Products, Inc. Warehouse Mezzanines Guide: Choosing the Right Lift Table

Vestil Products We Carry

Every Vestil product listed on bandcip.com, pulled live from our catalog. All Vestil equipment is quote-only, and every quote includes LTL freight or local delivery. Don’t see what you need? Vestil makes thousands of products; ask us for a quote.

Showing 1–21 of 31 results
