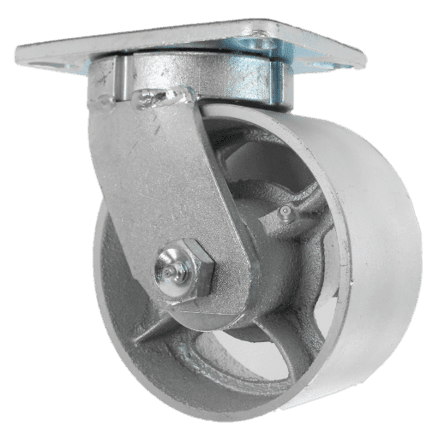

8″ x 3″ Heavy Duty Swivel Kingpinless, (SS) Semi-Steel Wheel, 2500 lbs Capacity
$185.95
Shipping Calculated at Checkout
or Learn how to set up a terms account with us
(SS) Semi-Steel • 1,251-2,500 lbs • 57/58 Series - Up to 7000 lbs • By Capacity • By Series • By Type • By Wheel Tread • Casters • Kingpinless • Steel • Top Plate
Buying in Bulk? We highly recommend visiting our high volume buying guide and filling out a quote form to ensure you receive the best discounts for a big order.
- 4-1/2″ x 6-1/4″ top plate
- 10-1/8″ mount height
- 2,500 lb. capacity
Description
57/58 Heavy Duty Kingpinless Series – Rated up to 7,000 lbs.
• ASTM1045 drop forged swivel head, 5/16” thick, 3” diameter precisely machined and hardened raceway, loaded ½” dia. hardened ball bearings
• Viton® Seal integrated with raceways available
• Legs are double welded 3/8” thick steel
• Grease fitting on raceway and axle
• 3/4” axle bolt/nut
• Zinc plated finish
Semi-Steel Wheels
• Precisely machined Semi-Steel wheels
• Temperature range: -45°F to 600°F
• Tensile strength of 30,000 PSI
• Hardness: Brinell 145
Additional information
| Weight | 23.500000 lbs |
|---|---|
| Bearing | |
| Capacity | 1,251 – 2,500 LBS |
| Caster Type | |
| Top Plate Size | |
| Wheel Type | (SS) SEMI-STEEL |
| Wheel Diameter | |
| Color | |
| Wheel Width |
