Hamaco MLI Heavy Duty Electric Mechanical Lift Table – 220 to 4410 lb Capacity

Quote-only. Every model on this page is priced to your application. Pick the models you need below and we reply with a quote, usually the same or next business day. Or call (888) 276-3386. Quote-only. This product is priced to your application. Request a quote below and we reply, usually the same or next business day. Or call (888) 276-3386.

Product photo coming soon
  • 220 to 4410 lbs capacity
  • Rated to 100000 cycles
  • 115V 1-ph, 220V or 460V 3-ph
Choose models & request a quote Not sure which one? Help me spec it

Choose your model

Tick every model you want priced and set a quantity. Your picks are carried into the quote form below.

No models selected Request a quote for selected Not sure which one? Help me spec it

Request a quote

For this product. Tell us where it ships and what it is lifting and we will size it and price it.Tell us how many and where it ships and we will price it, freight included.

Leave blank if you are not sure yet.

Help us size it

Ship-to address

Your request goes straight to our sales desk. We use the addresses only to quote freight and prepare the invoice, so you can pay as soon as you approve the quote. No account, no card details, no spam.

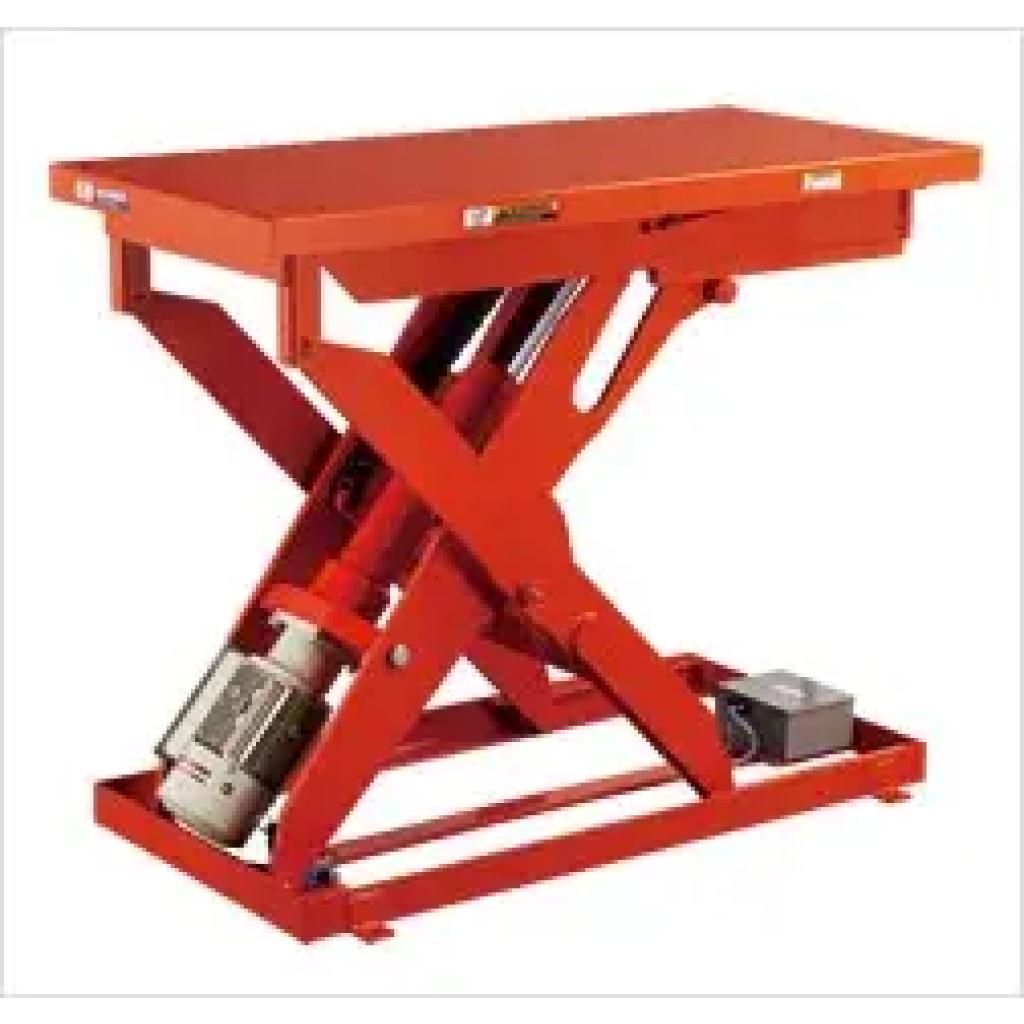

The Hamaco MLI is a heavy-duty electric mechanical scissor lift table driven by a ball screw instead of hydraulics. Hamaco rates it for up to 100,000 cycles continuously, at a cost comparable to a hydraulic lift.

It is built in 115V single-phase, 220V three-phase and 460V three-phase versions, with maximum and minimum limit switches. Standard, bellows (J suffix) and turntable (TN suffix) versions are offered. Capacities run from 220 lbs up to 4410 lbs.

Hamaco MLI Heavy Duty Series Specifications

Model Capacity Platform Lowered Raised Stroke Lift Time Power
MLI-100-0508W3A 220 lbs 19.7″ x 31.5″ 13.8″ 70.9″ 57.1″ 26 sec 115V 1-ph
MLI-200-0508WA 441 lbs 19.7″ x 31.5″ 9.8″ 48.0″ 38.2″ 26 sec 115V 1-ph
MLI-300-0409A 661 lbs 15.7″ x 35.4″ 6.1″ 27.6″ 21.5″ 17 sec 115V 1-ph
MLI-300-0410A 661 lbs 15.7″ x 41.3″ 6.1″ 36.6″ 30.5″ 25 sec 115V 1-ph
MLI-300-0509A 661 lbs 19.7″ x 35.4″ 6.1″ 27.6″ 21.5″ 17 sec 115V 1-ph
MLI-300-0510A 661 lbs 19.7″ x 41.3″ 6.1″ 36.6″ 30.5″ 25 sec 115V 1-ph
MLI-300-0609A 661 lbs 23.6″ x 35.4″ 6.1″ 27.6″ 21.5″ 17 sec 115V 1-ph
MLI-300-0610A 661 lbs 25.6″ x 41.3″ 6.1″ 36.6″ 30.5″ 25 sec 115V 1-ph
MLI-300-0809A 661 lbs 31.5″ x 35.4″ 6.1″ 27.6″ 21.5″ 17 sec 115V 1-ph
MLI-300-0810A 661 lbs 31.5″ x 41.3″ 6.1″ 36.6″ 30.5″ 25 sec 115V 1-ph
MLI-500-0510WA 1102 lbs 19.7″ x 41.3″ 16.5″ 63.0″ 46.5″ 35 sec 115V 1-ph
MLI-500-0612A 1102 lbs 23.6″ x 47.2″ 7.1″ 40.6″ 33.5″ 25 sec 115V 1-ph
MLI-500-1010WA 1102 lbs 39.4″ x 41.3″ 16.5″ 63.0″ 46.5″ 35 sec 115V 1-ph
MLI-750-0615A 1654 lbs 23.6″ x 59.1″ 9.1″ 48.0″ 39.0″ 35 sec 115V 1-ph
MLI-1000-0613A 2205 lbs 23.6″ x 51.2″ 9.1″ 39.8″ 30.7″ 35 sec 115V 1-ph
MLI-1000-1013A 2205 lbs 39.4″ x 51.2″ 9.0″ 39.8″ 30.7″ 35 sec 115V 1-ph
MLI-1000-1113-12-TN 2205 lbs 43.3″ x 51.2″ 12.0″ 42.7″ 30.7″ 35 sec 115V 1-ph turntable
MLI-1100-1010 2500 lbs 41.3″ x 41.3″ 8.1″ 27.8″ 19.7″ 20 sec 220V 3-ph
MLI-1100-1012 2500 lbs 41.3″ x 47.2″ 9.1″ 39.8″ 30.7″ 35 sec 220V 3-ph
MLI-1100-1212 2500 lbs 47.2″ x 47.2″ 9.1″ 39.8″ 30.7″ 35 sec 220V 3-ph
MLI-1500-1020 3306 lbs 39.4″ x 78.7″ 11.0″ 49.0″ 38.0″ 28 sec 220V 3-ph
MLI-2000-0914 4409 lbs 35.4″ x 55.0″ 11.0″ 40.6″ 29.6″ 28 sec 220V 3-ph
MLI-2000-1020 4410 lbs 39.4″ x 78.7″ 12.2″ 49.2″ 37.0″ 32 sec 220V 3-ph

Shown: all 115V single-phase standard models, the 115V turntable and the 220V models above 2205 lbs; Hamaco also lists 220V and 460V versions of most sizes plus bellows (J) models, available on request.

Key Features

  • Ball screw drive – no hydraulic oil
  • Rated up to 100,000 cycles continuously
  • Up to 30 cycles per hour on 115V, 80 per hour on 220V and 460V
  • Maximum and minimum limit switches
  • 115V single-phase, 220V three-phase or 460V three-phase
  • Turntable version rotates 360 degrees and locks (TN suffix)
  • Bellows full-cover versions (J suffix)

Common Applications

  • High-cycle production workstations
  • Heavy parts and fixture positioning
  • Machine loading where oil leaks are not acceptable
  • Assembly of large parts on a turntable top
  • Long panel and sheet handling (39.4 x 78.7 in models)

How to Choose the Right Heavy Duty Electric Mechanical Lift Table

Match the duty first. On 115V single-phase the MLI is rated up to 30 cycles per hour; the 220V and 460V three-phase versions allow up to 80 per hour. Loads above 2205 lbs need a three-phase model.

Then choose height. Most models lower to 6.1 to 12.2 inches and raise to 27.6 to 49.2 inches. The W models reach 48.0 to 70.9 inches; the MLI-100-0508W3A reaches 70.9 inches at 220 lbs.

Frequently Asked Questions

How many cycles is the MLI rated for?

Hamaco rates the MLI for up to 100,000 cycles continuously.

What voltages are available?

115V single-phase, 220V three-phase and 460V three-phase.

What is the highest capacity?

The MLI-2000-1020 is listed at 4410 lbs on a 39.4 x 78.7 inch platform.

Is there a rotating top?

Yes. The TN models have a 360 degree turntable that can be locked.

Can I weld on the table?

No. Hamaco says not to carry out welding on top of the table.
