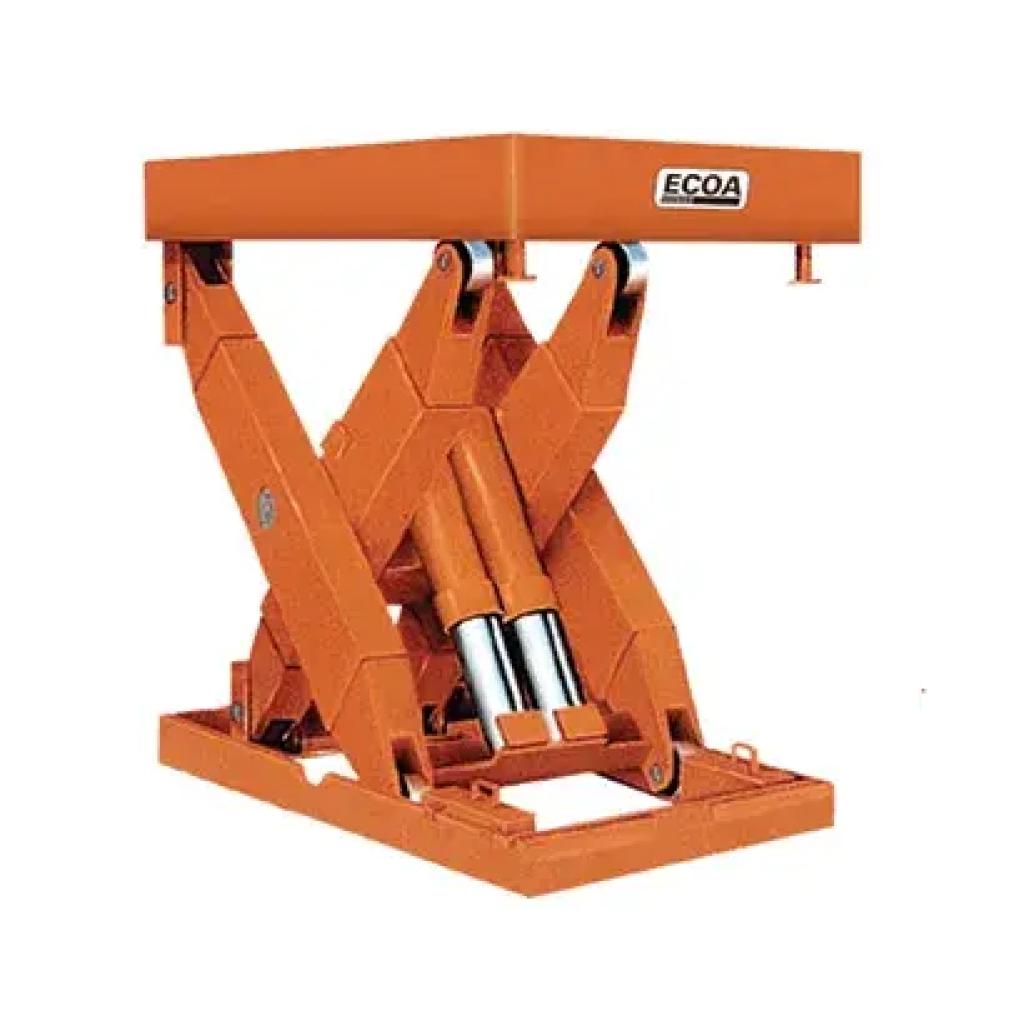

ECOA MLT Super Heavy-Duty Scissor Lift Table by Presto Lifts – 15000 to 120000 lb Capacity

Quote-only. Every model on this page is priced to your application. Pick the models you need below and we reply with a quote, usually the same or next business day. Or call (888) 276-3386. Quote-only. This product is priced to your application. Request a quote below and we reply, usually the same or next business day. Or call (888) 276-3386.

Product photo coming soon
  • 15000 to 120000 lbs capacity
  • 36″ to 72″ vertical travel
  • 120″ x 264″ max platform
Choose models & request a quote Not sure which one? Help me spec it

Choose your model

Tick every model you want priced and set a quantity. Your picks are carried into the quote form below.

No models selected Request a quote for selected Not sure which one? Help me spec it

Request a quote

For this product. Tell us where it ships and what it is lifting and we will size it and price it.Tell us how many and where it ships and we will price it, freight included.

Leave blank if you are not sure yet.

Help us size it

Ship-to address

Your request goes straight to our sales desk. We use the addresses only to quote freight and prepare the invoice, so you can pay as soon as you approve the quote. No account, no card details, no spam.

ECOA MLT Super Heavy-Duty Lift Tables cover the heaviest lifting jobs, from 15000 lbs on a single MLT up to 120000 lbs on the four-scissor MLTQD. ECOA is part of Presto Lifts.

The family has four versions: MLT single (15000-30000 lbs), MLTDW double-wide (30000-60000 lbs), MLTDL double-long (30000-60000 lbs) and MLTQD quad (80000-120000 lbs). All use rectangular structural tube scissor legs and torque tubes, an externally mounted power unit and a push-button pendant.

ECOA MLT, MLTDW, MLTDL and MLTQD Super Heavy-Duty Lifts Specifications

Model Capacity Travel Lowered Raised End/Side Cap Std Platform Max Platform Lift Time Motor
MLT-15-36 15000 lbs 36″ 16″ 52″ 12000 lbs 48″ x 60″ 72″ x 84″ 30 sec 5 HP
MLT-20-36 20000 lbs 36″ 20″ 56″ 16000 lbs 48″ x 60″ 72″ x 84″ 30 sec 5 HP
MLT-25-36 25000 lbs 36″ 20″ 56″ 24000 lbs 48″ x 60″ 72″ x 84″ 40 sec 5 HP
MLT-30-36 30000 lbs 36″ 20″ 56″ 24000 lbs 48″ x 60″ 72″ x 84″ 40 sec 5 HP
MLT-15-48 15000 lbs 48″ 16″ 64″ 12000 lbs 48″ x 72″ 72″ x 96″ 30 sec 5 HP
MLT-20-48 20000 lbs 48″ 20″ 68″ 16000 lbs 48″ x 72″ 72″ x 96″ 30 sec 5 HP
MLT-25-48 25000 lbs 48″ 20″ 68″ 24000 lbs 48″ x 72″ 72″ x 96″ 40 sec 5 HP
MLT-30-48 30000 lbs 48″ 20″ 68″ 24000 lbs 48″ x 72″ 72″ x 96″ 40 sec 5 HP
MLT-15-60 15000 lbs 60″ 16″ 76″ 12000 lbs 48″ x 84″ 72″ x 108″ 45 sec 5 HP
MLT-20-60 20000 lbs 60″ 20″ 80″ 16000 lbs 48″ x 84″ 72″ x 108″ 45 sec 5 HP
MLT-25-60 25000 lbs 60″ 20″ 80″ 24000 lbs 48″ x 84″ 72″ x 108″ 60 sec 5 HP
MLT-30-60 30000 lbs 60″ 20″ 80″ 24000 lbs 48″ x 84″ 72″ x 108″ 60 sec 5 HP
MLT-15-72 15000 lbs 72″ 16″ 88″ 12000 lbs 48″ x 108″ 72″ x 132″ 45 sec 5 HP
MLT-20-72 20000 lbs 72″ 20″ 92″ 16000 lbs 48″ x 108″ 72″ x 132″ 45 sec 5 HP
MLT-25-72 25000 lbs 72″ 20″ 92″ 24000 lbs 48″ x 108″ 72″ x 132″ 60 sec 5 HP
MLT-30-72 30000 lbs 72″ 20″ 92″ 24000 lbs 48″ x 108″ 72″ x 132″ 60 sec 5 HP
MLTDW-30-36 30000 lbs 36″ 16″ 52″ 24000 lbs 96″ x 60″ 120″ x 84″ 32 sec 5 HP
MLTDW-40-36 40000 lbs 36″ 20″ 56″ 32000 lbs 96″ x 60″ 120″ x 84″ 55 sec 5 HP
MLTDW-60-36 60000 lbs 36″ 20″ 56″ 48000 lbs 96″ x 60″ 120″ x 84″ 75 sec 5 HP
MLTDW-30-48 30000 lbs 48″ 16″ 64″ 24000 lbs 96″ x 72″ 120″ x 96″ 30 sec 5 HP
MLTDW-40-48 40000 lbs 48″ 20″ 68″ 32000 lbs 96″ x 72″ 120″ x 96″ 55 sec 5 HP
MLTDW-60-48 60000 lbs 48″ 20″ 68″ 48000 lbs 96″ x 72″ 120″ x 96″ 75 sec 5 HP
MLTDW-30-72 30000 lbs 72″ 16″ 88″ 24000 lbs 96″ x 108″ 120″ x 132″ 45 sec 5 HP
MLTDW-40-72 40000 lbs 72″ 20″ 92″ 32000 lbs 96″ x 108″ 120″ x 132″ 80 sec 5 HP
MLTDW-60-72 60000 lbs 72″ 20″ 92″ 48000 lbs 96″ x 108″ 120″ x 132″ 100 sec 7-1/2 HP
MLTDL-30-36 30000 lbs 36″ 16″ 52″ 22500 lbs 48″ x 120″ 72″ x 168″ 32 sec 5 HP
MLTDL-40-36 40000 lbs 36″ 20″ 56″ 30000 lbs 48″ x 120″ 72″ x 168″ 55 sec 5 HP
MLTDL-60-36 60000 lbs 36″ 20″ 56″ 48000 lbs 48″ x 120″ 72″ x 168″ 75 sec 5 HP
MLTDL-30-48 30000 lbs 48″ 16″ 64″ 22500 lbs 48″ x 144″ 72″ x 192″ 30 sec 5 HP
MLTDL-40-48 40000 lbs 48″ 20″ 68″ 30000 lbs 48″ x 144″ 72″ x 192″ 55 sec 5 HP
MLTDL-60-48 60000 lbs 48″ 20″ 68″ 48000 lbs 48″ x 144″ 72″ x 192″ 75 sec 5 HP
MLTDL-30-72 30000 lbs 72″ 16″ 88″ 22500 lbs 48″ x 216″ 72″ x 264″ 45 sec 5 HP
MLTDL-40-72 40000 lbs 72″ 20″ 92″ 30000 lbs 48″ x 216″ 72″ x 264″ 80 sec 5 HP
MLTDL-60-72 60000 lbs 72″ 20″ 92″ 48000 lbs 48″ x 216″ 72″ x 264″ 100 sec 7-1/2 HP
MLTQD-80-36 80000 lbs 36″ 20″ 56″ 64000 lbs 96″ x 120″ 120″ x 168″ 80 sec 10 HP
MLTQD-120-36 120000 lbs 36″ 20″ 56″ 96000 lbs 96″ x 120″ 120″ x 168″ 110 sec 10 HP
MLTQD-80-48 80000 lbs 48″ 20″ 68″ 64000 lbs 96″ x 144″ 120″ x 192″ 80 sec 10 HP
MLTQD-120-48 120000 lbs 48″ 20″ 68″ 96000 lbs 96″ x 144″ 120″ x 192″ 110 sec 10 HP
MLTQD-80-60 80000 lbs 60″ 20″ 80″ 64000 lbs 96″ x 168″ 120″ x 216″ 120 sec 10 HP
MLTQD-120-60 120000 lbs 60″ 20″ 80″ 96000 lbs 96″ x 168″ 120″ x 216″ 120 sec 15 HP
MLTQD-80-72 80000 lbs 72″ 20″ 92″ 64000 lbs 96″ x 216″ 120″ x 264″ 120 sec 10 HP
MLTQD-120-72 120000 lbs 72″ 20″ 92″ 96000 lbs 96″ x 216″ 120″ x 264″ 120 sec 15 HP

The catalog lists 48 standard models; the six 60-inch travel MLTDW and MLTDL models are not shown and are available on request, as are platform sizes to fit your application.

Key Features

  • Externally mounted power unit
  • Push-button pendant control with 24V operating control voltage; foot control switch available
  • Upper travel limit switch plus 8 mechanical back-up stops
  • Rectangular structural tube scissor legs and torque tubes for stability and minimal deflection
  • Dual safety restraint maintenance bars
  • Cylinder rod end protectors and flow limiter valve at cylinder bases
  • Double wire braid pressure hoses

Common Applications

  • Heavy die and mold handling
  • Large assemblies and fixtures
  • Heavy equipment positioning
  • Heavy plate and bulk material handling

How to Choose the Right Super Heavy-Duty Scissor Lift Table

Start with the load and footprint. MLT single units cover 15000 to 30000 lbs on platforms from 48″ x 60″. MLTDW doubles the width (96″ wide) and MLTDL doubles the length (up to 216″ long), both for 30000 to 60000 lbs. MLTQD uses four scissors for 80000 or 120000 lbs.

Then pick travel: 36, 48, 60 or 72 inches. Lowered heights are 16″ or 20″, so these lifts are often considered for pit mounting when loading from floor level. Motors run 5 to 15 HP depending on model.

Frequently Asked Questions

What is the highest capacity available?

120000 lbs on the MLTQD-120 quad models.

What is the difference between MLTDW and MLTDL?

MLTDW is double-wide (96″ wide platforms). MLTDL is double-long (48″ wide, 120″ to 216″ long standard platforms).

What safety features are standard?

An upper travel limit switch plus 8 mechanical back-up stops, dual safety restraint maintenance bars, cylinder rod end protectors and flow limiter valves at the cylinder bases.

What is the lowered height?

16″ or 20″ depending on model.

Can the platform be customized?

Yes. ECOA offers platform sizes to fit your application.
