Autoquip TorkLift T1 Heavy Duty Scissor Lift Table – 2000 to 30000 lb Capacity

Quote-only. Every model on this page is priced to your application. Pick the models you need below and we reply with a quote, usually the same or next business day. Or call (888) 276-3386. Quote-only. This product is priced to your application. Request a quote below and we reply, usually the same or next business day. Or call (888) 276-3386.

Product photo coming soon
  • 2000 to 30000 lbs capacity
  • 36″ to 72″ vertical travel
  • Captured rollers, self-aligning cylinder
Choose models & request a quote Not sure which one? Help me spec it

Choose your model

Tick every model you want priced and set a quantity. Your picks are carried into the quote form below.

No models selected Request a quote for selected Not sure which one? Help me spec it

Request a quote

For this product. Tell us where it ships and what it is lifting and we will size it and price it.Tell us how many and where it ships and we will price it, freight included.

Leave blank if you are not sure yet.

Help us size it

Ship-to address

Your request goes straight to our sales desk. We use the addresses only to quote freight and prepare the invoice, so you can pay as soon as you approve the quote. No account, no card details, no spam.

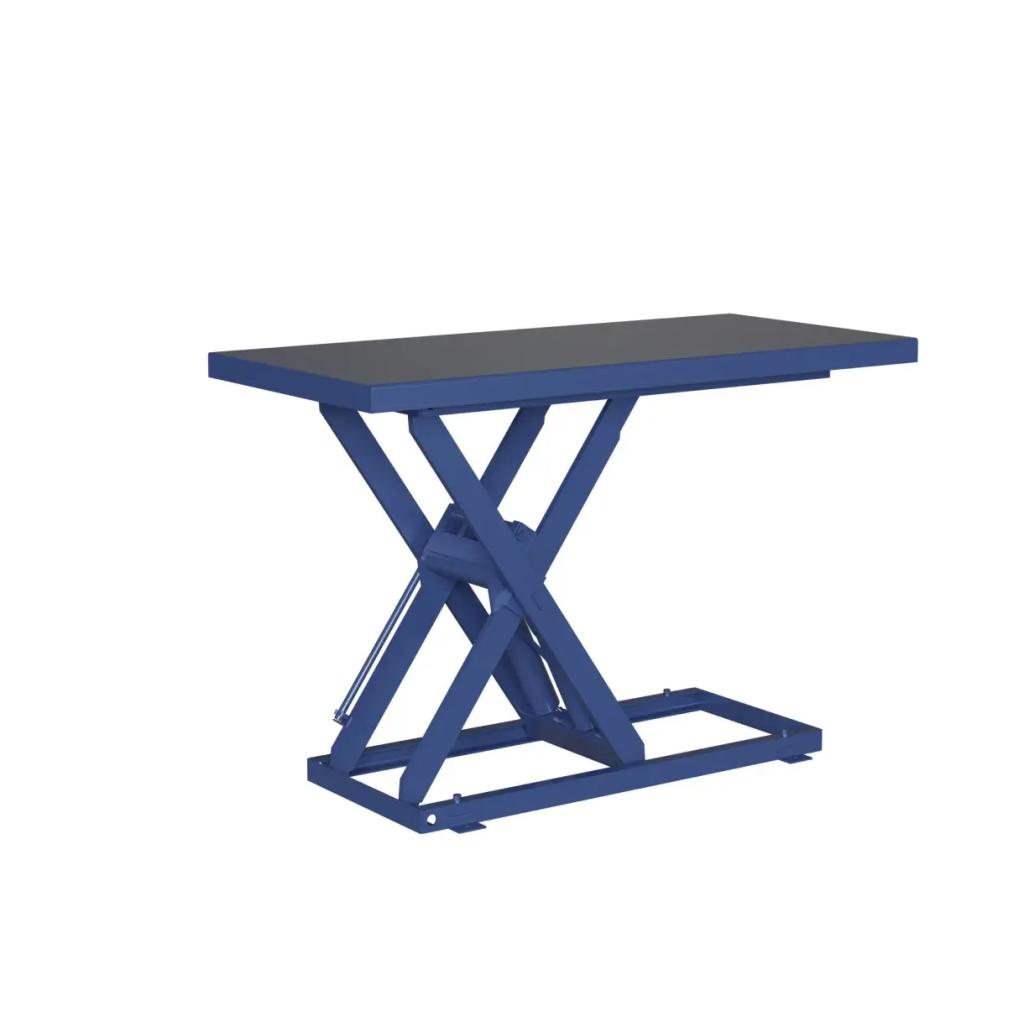

The Autoquip TorkLift is a heavy-duty single-scissor lift table from Autoquip’s American Lifts line. Every TorkLift comes standard with captured rollers, a two-piece self-aligning cylinder, one-piece axle pins and high-impact spiral-wound bearings for durability and rigidity.

The T1 manual lists 28 standard models from 2000 to 30000 lbs with 36 to 72 inches of travel. End and side load ratings equal half of center capacity on every T1 model, which helps when loads are pushed or rolled on from an edge. Autoquip customizes TorkLifts for controls, tilt, rotation, conveyors and automation.

Autoquip TorkLift T1 Specifications

Model Capacity Travel Lowered Raised Min Platform Max End Load Max Side Load Raise Time Cylinders Ship Wt
T36-022 2200 lbs 36″ 6.5″ 42.5″ 24″ x 48″ 1100 lbs 1100 lbs 40 sec 1 525 lbs
T36-044 4400 lbs 36″ 6.5″ 42.5″ 24″ x 48″ 2200 lbs 2200 lbs 32 sec 2 600 lbs
T36-060 6000 lbs 36″ 7″ 43″ 24″ x 48″ 3000 lbs 3000 lbs 35 sec 2 650 lbs
T1-36-080 8000 lbs 36″ 12″ 48″ 48″ x 61″ 4000 lbs 4000 lbs 43 sec 2 2150 lbs
T1-36-100 10000 lbs 36″ 14″ 50″ 36″ x 64″ 5000 lbs 5000 lbs 47 sec 2 2600 lbs
T1-36-120 12000 lbs 36″ 14″ 50″ 36″ x 64″ 6000 lbs 6000 lbs 47 sec 2 2800 lbs
T1-36-160 16000 lbs 36″ 16″ 52″ 36″ x 72″ 8000 lbs 8000 lbs 39 sec 2 3000 lbs
T1-36-300 30000 lbs 36″ 18″ 54″ 24″ x 80″ 15000 lbs 15000 lbs 60 sec 4 3200 lbs
T1-48-020 2000 lbs 48″ 8″ 56″ 30″ x 72″ 1000 lbs 1000 lbs 55 sec 1 1200 lbs
T1-48-040 4000 lbs 48″ 8″ 56″ 30″ x 72″ 2000 lbs 2000 lbs 40 sec 2 1250 lbs
T1-48-060 6000 lbs 48″ 9″ 57″ 30″ x 72″ 3000 lbs 3000 lbs 52 sec 2 1350 lbs
T1-48-080 8000 lbs 48″ 13.25″ 61.25″ 32″ x 80″ 4000 lbs 4000 lbs 70 sec 2 3200 lbs
T1-48-100 10000 lbs 48″ 15″ 63″ 42″ x 82″ 5000 lbs 5000 lbs 70 sec 2 3600 lbs
T1-48-120 12000 lbs 48″ 16″ 64″ 42″ x 82″ 6000 lbs 6000 lbs 70 sec 2 3600 lbs
T1-48-160 16000 lbs 48″ 16″ 64″ 42″ x 82″ 8000 lbs 8000 lbs 97 sec 3 3600 lbs
T1-48-200 20000 lbs 48″ 16″ 64″ 42″ x 82″ 10000 lbs 10000 lbs 97 sec 3 4400 lbs
T1-48-300 30000 lbs 48″ 18″ 66″ 44″ x 84″ 15000 lbs 15000 lbs 46 sec 4 6000 lbs
T1-60-025 2500 lbs 60″ 9.75″ 69.75″ 50″ x 98″ 1250 lbs 1250 lbs 40 sec 2 2100 lbs
T1-60-040 4000 lbs 60″ 9.75″ 69.75″ 48″ x 84″ 2000 lbs 2000 lbs 40 sec 2 2100 lbs
T1-60-060 6000 lbs 60″ 11.75″ 71.75″ 56″ x 102″ 3000 lbs 3000 lbs 80 sec 2 2300 lbs
T1-60-090 9000 lbs 60″ 14.5″ 74.5″ 56″ x 102″ 4500 lbs 4500 lbs 80 sec 2 3200 lbs
T1-60-120 12000 lbs 60″ 14.5″ 74.5″ 56″ x 102″ 6000 lbs 6000 lbs 80 sec 2 4000 lbs
T1-60-160 16000 lbs 60″ 15.5″ 75.5″ 64″ x 104″ 8000 lbs 8000 lbs 80 sec 4 5000 lbs
T1-60-200 20000 lbs 60″ 15.5″ 75.5″ 64″ x 104″ 10000 lbs 10000 lbs 80 sec 4 5600 lbs
T1-60-300 30000 lbs 60″ 18.5″ 78.5″ 64″ x 104″ 15000 lbs 15000 lbs 75 sec 4 6300 lbs
T1-72-020 2000 lbs 72″ 9.75″ 81.75″ 48″ x 110″ 1000 lbs 1000 lbs 64 sec 2 2300 lbs
T1-72-040 4000 lbs 72″ 11.25″ 83.25″ 48″ x 110″ 2000 lbs 2000 lbs 45 sec 1 2600 lbs
T1-72-060 6000 lbs 72″ 12.75″ 84.75″ 48″ x 110″ 3000 lbs 3000 lbs 80 sec 2 3400 lbs

Standard T1 models from the Autoquip Tork Lift manual (830AMT V4, 2020); custom designs may differ.

Key Features

  • Captured rollers
  • Two-piece self-aligning cylinder
  • One-piece axle pins
  • High-impact spiral-wound bearings
  • 1 to 4 hydraulic cylinders depending on capacity
  • 5 HP intermittent-duty three-phase motor listed in the manual

Common Applications

  • Heavy die, mold and fixture handling
  • Machine feeding with heavy parts
  • Assembly of large, heavy products
  • High-cycle production work stations
  • Loads rolled or pushed on from the platform edge

How to Choose the Right Heavy Duty Scissor Lift Table

Model numbers read T1-travel-capacity: T1-48-100 has 48 inches of travel and 10000 lbs capacity (the three lightest 36 inch models are listed as T36-022, T36-044 and T36-060). Pick the travel first, then the capacity.

Heavier models sit higher when lowered: 6.5 inches on the T36-022 versus 18.5 inches on the T1-60-300. If the lift will be loaded by pallet jack at floor level, plan for a pit or a lower-capacity model. Raise times run from 32 to 97 seconds.

Frequently Asked Questions

What capacities does the TorkLift T1 cover?

The T1 table in Autoquip’s manual runs from 2000 lbs to 30000 lbs. Autoquip’s web page lists 2200 to 20000 lbs, so confirm the 30000 lb models on quote.

How much travel is available?

36, 48, 60 or 72 inches on standard models. Autoquip’s web page lists 24 to 72 inches for custom builds.

What comes standard on every TorkLift?

Captured rollers, a two-piece self-aligning cylinder, one-piece axle pins and high-impact spiral-wound bearings.

What is the end and side load rating?

On every T1 model the max end load and max side load are each half of the rated capacity.

What motor does it use?

The manual lists a 5 HP intermittent-duty motor at 208/230V or 460V, 60 Hz, three phase.
