Advance Lifts UHC Series Ultra High Cycle Scissor Lift Table – 3000 to 6000 lb Capacity
Quote-only. Every model on this page is priced to your application. Pick the models you need below and we reply with a quote, usually the same or next business day. Or call (888) 276-3386. Quote-only. This product is priced to your application. Request a quote below and we reply, usually the same or next business day. Or call (888) 276-3386.
Product photo coming soon
- 3000 to 6000 lbs capacity
- 3 million cycle warranty
- 10 HP power unit
Choose your model
Tick every model you want priced and set a quantity. Your picks are carried into the quote form below.
This series is quoted as a whole. Use the form below and tell us the load, platform and height you need.
Request a quote
For this product. Tell us where it ships and what it is lifting and we will size it and price it.Tell us how many and where it ships and we will price it, freight included.
Thanks, we have it.
Your request went to our sales desk. Expect a reply from rfq@bandcip.com, usually the same or next business day.
Need it sooner? Call (888) 276-3386.

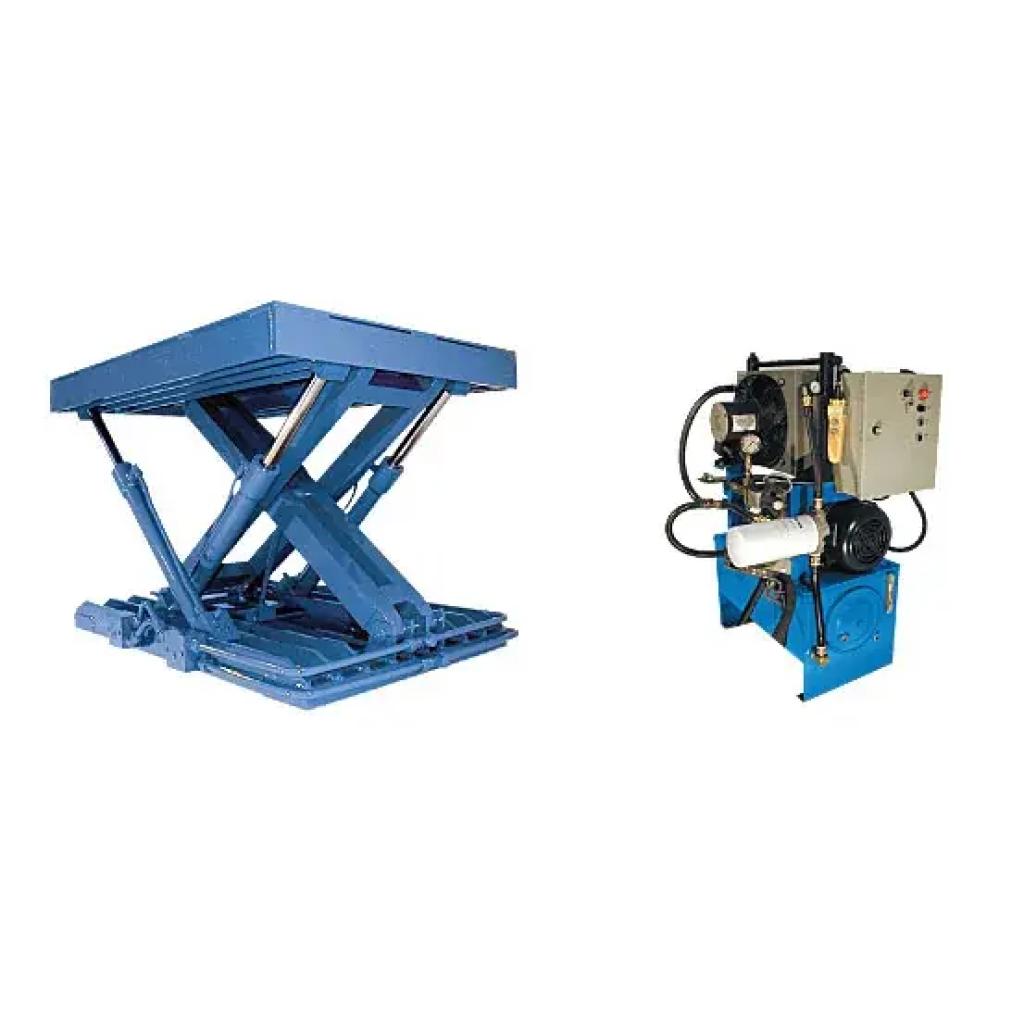

Advance Lifts UHC Series ultra high cycle scissor lift tables are built for continuous automated duty. They are warranted for 10 years or 3 million cycles.
The lifts use precision tolerances, sliders instead of wheels, double acting cylinders and a 10 HP power unit with a 20 gallon reservoir and oil cooler. Advance lists speeds up to 40 feet per minute.
Advance Lifts UHC Series Specifications
| Model | Capacity | Travel | Std Platform | Opt. Max Platform | Lowered | Raised | Lift Time | Motor |
|---|---|---|---|---|---|---|---|---|
| UHC-3032 | 3000 lbs | 32″ | 36″ x 50″ | 72″ x 90″ | 11-1/4″ | 43-1/4″ | 4 sec | 10 HP |
| UHC-6032 | 6000 lbs | 32″ | 42″ x 50″ | 78″ x 90″ | 12-1/2″ | 44-1/2″ | 6-1/4 sec | 10 HP |
Platform sizes are width x length in inches.
Key Features
- Precision tolerances for smooth operation and accurate positioning
- Sliders in place of wheels
- Double acting cylinders
- Special grade alloy steel and custom seals
- 10 HP motor, 20 gallon reservoir, oil cooler and better than 10 micron absolute filtration
- Speeds up to 40 feet per minute
- Manual and automatic operation modes
Common Applications
- Continuous automated production lines
- Robot load and unload stations
- High speed machine feeding
- Precise repeatable positioning of parts
How to Choose the Right High Cycle Scissor Lift Table
There are two standard models: the UHC-3032 (3000 lbs, 36 x 50 inch platform) and the UHC-6032 (6000 lbs, 42 x 50 inch platform). Both have 32 inches of travel.
Choose the position control level with Advance: standard proximity sensors for about +/- 1/4 inch, an intermediate system with +/- .030 inch repeatability, or a custom solution.
Frequently Asked Questions
How is UHC different from HC?
UHC lifts are warranted for 3 million cycles (HC for 1000000). They use sliders, double acting cylinders, alloy steel and a 10 HP power unit with an oil cooler.
How fast is it?
Advance lists speeds up to 40 feet per minute. Full travel takes 4 seconds on the UHC-3032 and 6-1/4 seconds on the UHC-6032.
How accurate is positioning?
Standard proximity sensors give about +/- 1/4 inch. An intermediate system gives +/- .030 inch repeatability, and custom systems are available.
What warranty applies?
10 years or 3 million cycles.
Buying a high cycle scissor lift table from B&C Industrial Products
B&C Industrial Products is a material handling distributor in Garrett, Indiana, serving customers nationwide. We stock and quote lift tables, lift carts, positioners, casters, pallet racking and cranes. Every Advance Lifts model on this page is quoted to your configuration, so tell us the load, the platform size and the working height you need and we will spec it.
Talk to a person who sells these every day.
B&C Industrial Products, Garrett, Indiana. Family-owned material handling distributor serving serving customers nationwide.
Call(888) 276-3386Same or next business day
Emailrfq@bandcip.comQuotes, drawings and questions
- 330 to 1760 lbs capacity
- 23.6" x 39.4" max platform
- 49.8" raised height (A-350W)
The Southworth Manual Dandy Lift is a portable foot-pump scissor lift cart. Five models run from the 330 lb L-150 up to the 1760 lb A-800, and the high-lift A-350W reaches 49.8 inches.
The Dandy's design is built around the operator: a 180-degree access foot pedal that can be pumped from the side or the back, an oversized lowering handle reachable from any position, and contoured comfort grips. An integrated floor lock holds the cart in place while you work.
Southworth Manual Dandy Lift Specifications
| Model | Capacity | Platform | Lowered | Travel | Raised | Ship Weight |
|---|---|---|---|---|---|---|
| L-150 | 330 lbs | 17.7" x 28" | 8.3" | 20.7" | 29" | 80 lbs |
| L-250 | 550 lbs | 19.7" x 31.5" | 9.5" | 22.2" | 31.8" | 115 lbs |
| A-350W | 770 lbs | 23.6" x 35.8" | 17.5" | 36.2" | 49.8" | 230 lbs |
| A-500 | 1100 lbs | 23.6" x 35.8" | 11.8" | 24.8" | 36.6" | 195 lbs |
| A-800 | 1760 lbs | 23.6" x 39.4" | 13.6" | 27.2" | 40.2" | 275 lbs |
The Dandy family also includes the DLV self-leveling Dandy Levelers and the M-500L pallet and skid lifter transporter. Ask us if one of those is the better fit.
Key Features
- Manual foot pump with 180-degree access - pump from the side or the back
- Open-design oversized lowering handle reachable from any position
- Sure-grip cushioning and contoured hand positions
- Integrated floor lock
- Hydraulic jack rated for roughly 400,000 strokes
Common Applications
- Factories, stores and warehouses
- Repair shops and garages
- Nurseries and greenhouses
- Stacking and unstacking
- Adjustable-height work surface
How to Choose the Right Portable Scissor Lift Cart
L-150 and L-250 are the light-duty models for totes and small parts. A-500 and A-800 are the medium and heavy-duty models with the wider 23.6-inch platform.
The A-350W is the one to notice: 770 lbs but 36.2 inches of travel to a 49.8-inch raised height. If your operator needs to load something tall, that extra travel is worth more than raw capacity. If loads change as you stack, ask about the self-leveling Dandy Leveler instead.
Frequently Asked Questions
How much does a Manual Dandy Lift hold?
330 lbs on the L-150 up to 1760 lbs on the A-800.
Which Dandy lifts highest?
The A-350W, at a 49.8-inch raised height with 36.2 inches of vertical travel.
Does it need power?
No. The Manual Dandy runs entirely on a foot pump. Southworth also makes the Powered Dandy if you want push-button operation.
Can the foot pedal be reached from the side?
Yes. The pedal has 180-degree access, so it can be pumped from either side or from behind the unit.
Buying a portable scissor lift cart from B&C Industrial Products
B&C Industrial Products is a material handling distributor in Garrett, Indiana, serving customers nationwide. We stock and quote lift tables, lift carts, positioners, casters, pallet racking and cranes. Every Southworth model on this page is quoted to your configuration, so tell us the load, the platform size and the working height you need and we will spec it.
The Vestil Lift and Tilt Cart with Sequence Select raises a load and then tilts it toward the operator, so parts in a bin or on a pallet come to the worker instead of the worker bending into the bin. A selector lets the operator choose whether the foot pump lifts or tilts, on the same pedal.
Quoted as one configuration: 1000 lb capacity, 35.5" x 19.5" platform, 45 degree tilt, 15" lowered to 32" raised.
Key Features
- Sequence select: one foot pedal lifts, then tilts, without changing pedals
- 45 degree tilt brings the load to the operator
- Two rigid and two swivel polyurethane casters with floor lock
- Steel platform with a formed lip on the low side to hold containers
Common Applications
- Feeding parts from bins and gaylords at a workstation
- Assembly cells where the operator reaches into a container all shift
- Kitting and order picking
Frequently Asked Questions
Can the platform lift without tilting?
Yes. The sequence selector lets the operator lift only, or lift and then tilt.
Does it need power?
No. Lift and tilt are both foot-pump hydraulic.
