Advance Lifts SD Double Long Series Scissor Lift Table – 10000 to 30000 lb Capacity

Quote-only. Every model on this page is priced to your application. Pick the models you need below and we reply with a quote, usually the same or next business day. Or call (888) 276-3386. Quote-only. This product is priced to your application. Request a quote below and we reply, usually the same or next business day. Or call (888) 276-3386.

Product photo coming soon
  • 10000 to 30000 lbs capacity
  • Platforms 4 x 16 ft to 8 x 24 ft
  • 58 in of vertical travel
Choose models & request a quote Not sure which one? Help me spec it

Choose your model

Tick every model you want priced and set a quantity. Your picks are carried into the quote form below.

No models selected Request a quote for selected Not sure which one? Help me spec it

Request a quote

For this product. Tell us where it ships and what it is lifting and we will size it and price it.Tell us how many and where it ships and we will price it, freight included.

Leave blank if you are not sure yet.

Help us size it

Ship-to address

Your request goes straight to our sales desk. We use the addresses only to quote freight and prepare the invoice, so you can pay as soon as you approve the quote. No account, no card details, no spam.

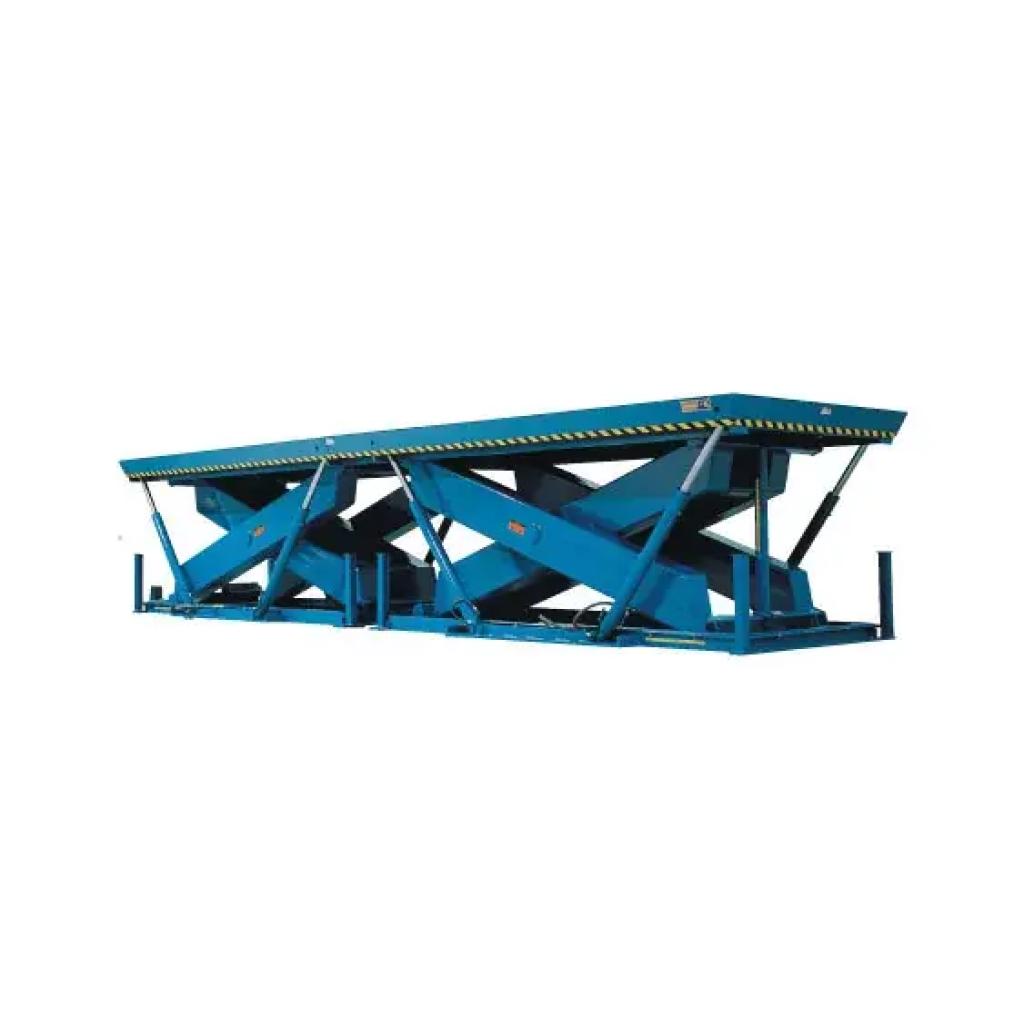

Advance Lifts SD Double Long Series scissor lift tables pair two super duty scissor sets end to end for very long, very heavy loads. Capacities run from 10000 to 30000 lbs.

All models have 58 inches of travel. Platforms run from 4 x 16 feet to 8 x 24 feet, with 5 or 7-1/2 HP motors.

Advance Lifts SD Double Long Series Specifications

Model Capacity Travel Platform Lowered Raised Lift Time Motor
SD-05408DL 10000 lbs 58″ 4 ft x 16 ft 10″ 68″ 48 sec 5 HP
SD-05409DL 10000 lbs 58″ 4 ft x 18 ft 10″ 68″ 48 sec 5 HP
SD-05410DL 10000 lbs 58″ 4 ft x 20 ft 10″ 68″ 48 sec 5 HP
SD-05608DL 10000 lbs 58″ 6 ft x 16 ft 10″ 68″ 48 sec 5 HP
SD-05609DL 10000 lbs 58″ 6 ft x 18 ft 10″ 68″ 48 sec 5 HP
SD-05610DL 10000 lbs 58″ 6 ft x 20 ft 10″ 68″ 48 sec 5 HP
SD-05808DL 10000 lbs 58″ 8 ft x 16 ft 10″ 68″ 48 sec 5 HP
SD-05809DL 10000 lbs 58″ 8 ft x 18 ft 10″ 68″ 48 sec 5 HP
SD-05810DL 10000 lbs 58″ 8 ft x 20 ft 10″ 68″ 48 sec 5 HP
SD-10408DL 16000 lbs 58″ 4 ft x 16 ft 15″ 73″ 70 sec 5 HP
SD-10409DL 16000 lbs 58″ 4 ft x 18 ft 15″ 73″ 70 sec 5 HP
SD-10410DL 16000 lbs 58″ 4 ft x 20 ft 15″ 73″ 70 sec 5 HP
SD-10608DL 16000 lbs 58″ 6 ft x 16 ft 15″ 73″ 70 sec 5 HP
SD-10609DL 16000 lbs 58″ 6 ft x 18 ft 15″ 73″ 70 sec 5 HP
SD-10610DL 16000 lbs 58″ 6 ft x 20 ft 15″ 73″ 70 sec 5 HP
SD-10808DL 16000 lbs 58″ 8 ft x 16 ft 15″ 73″ 70 sec 5 HP
SD-10809DL 16000 lbs 58″ 8 ft x 18 ft 15″ 73″ 70 sec 5 HP
SD-10810DL 16000 lbs 58″ 8 ft x 20 ft 15″ 73″ 70 sec 5 HP
SD-15610DL 20000 lbs 58″ 6 ft x 20 ft 16-1/2″ 74-1/2″ 76 sec 7-1/2 HP
SD-15611DL 20000 lbs 58″ 6 ft x 22 ft 16-1/2″ 74-1/2″ 76 sec 7-1/2 HP
SD-15612DL 20000 lbs 58″ 6 ft x 24 ft 16-1/2″ 74-1/2″ 76 sec 7-1/2 HP
SD-15810DL 20000 lbs 58″ 8 ft x 20 ft 16-1/2″ 74-1/2″ 76 sec 7-1/2 HP
SD-15811DL 20000 lbs 58″ 8 ft x 22 ft 16-1/2″ 74-1/2″ 76 sec 7-1/2 HP
SD-15812DL 20000 lbs 58″ 8 ft x 24 ft 16-1/2″ 74-1/2″ 76 sec 7-1/2 HP
SD-20610DL 30000 lbs 58″ 6 ft x 20 ft 20″ 78″ 76 sec 7-1/2 HP
SD-20611DL 30000 lbs 58″ 6 ft x 22 ft 20″ 78″ 76 sec 7-1/2 HP
SD-20612DL 30000 lbs 58″ 6 ft x 24 ft 20″ 78″ 76 sec 7-1/2 HP
SD-20810DL 30000 lbs 58″ 8 ft x 20 ft 20″ 78″ 76 sec 7-1/2 HP
SD-20811DL 30000 lbs 58″ 8 ft x 22 ft 20″ 78″ 76 sec 7-1/2 HP
SD-20812DL 30000 lbs 58″ 8 ft x 24 ft 20″ 78″ 76 sec 7-1/2 HP

All 30 SD double long models listed by Advance Lifts are shown.

Key Features

  • Double long super duty scissor base
  • 58 inches of travel on every model
  • 5 HP or 7-1/2 HP motor depending on capacity
  • Controllers are Underwriters Laboratory listed assemblies
  • Machine grade cylinders and double wire braid hoses with JIC fittings
  • Mild steel reservoir, baked enamel finish
  • Built to conform to all applicable ANSI codes

Common Applications

  • Very long, heavy loads such as beams, pipe bundles and rail parts
  • Large machinery and vehicle component handling
  • Heavy loads rolled on from the side
  • Long heavy assembly platforms

How to Choose the Right Double Long Scissor Lift Table

Capacity comes in four steps: 10000, 16000, 20000 and 30000 lbs. The 10000 and 16000 lb models come 4, 6 or 8 feet wide and 16 to 20 feet long; the 20000 and 30000 lb models come 6 or 8 feet wide and 20 to 24 feet long.

Lowered height rises with capacity, from 10 inches to 20 inches. The vendor table rates side loading well above end loading on these long tables, so tell Advance how the load will be placed.

Frequently Asked Questions

How long are the platforms?

From 16 feet on the 10000 and 16000 lb models up to 24 feet on the 20000 and 30000 lb models.

How high does it raise?

All models have 58 inches of travel, with raised heights from 68 to 78 inches.

How long does a full lift take?

Advance lists 48 seconds for the 10000 lb models, 70 seconds for 16000 lb and 76 seconds for 20000 and 30000 lb models.

What warranty applies?

Advance lists 2 years parts and labor and 10 years structural.
