Advance Lifts HDTM/HDTP Heavy Duty Ring Bearing Turntable – 5000 to 10000 lb Capacity

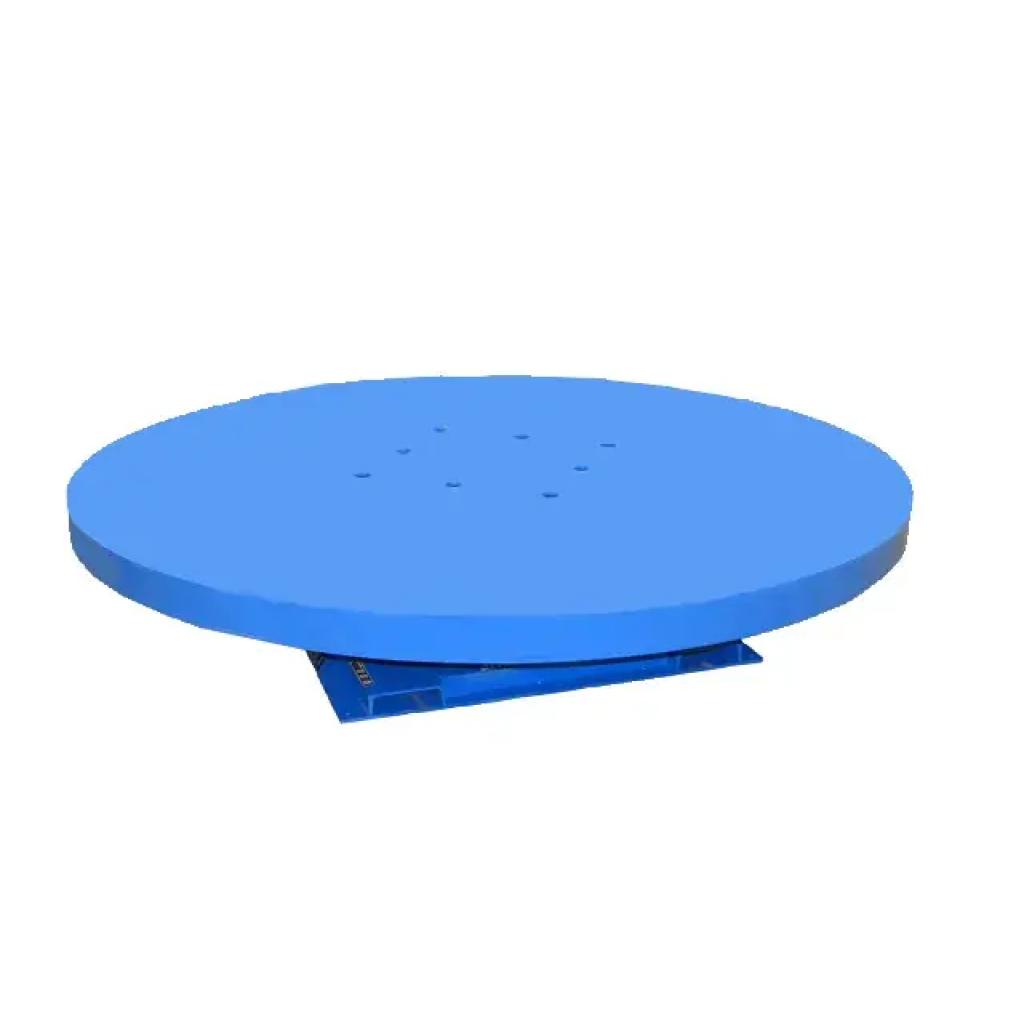

The Advance Lifts HDTM/HDTP series carry the platform on a high capacity ring bearing, which handles heavy and off-center loads better than a kingpin design. Platforms run from 48 x 48 up to 120 x 120 inches on a 48 x 48 inch base frame.

HDTM models are turned by hand in either direction. HDTP models are powered by AC motors and drives with clockwise and counterclockwise rotation standard, at 0-5 RPM or 0-10 RPM. Reinforced (R) platforms raise the edge load rating to the full rated capacity.

Advance Lifts HDTM/HDTP Ring Bearing Turntables Specifications

All models use a 48 x 48 inch base frame; rectangular platforms are standard and round platforms are optional.

Key Features

• Platform supported by a high capacity ring bearing
• Standard or high capacity reinforced platform configurations
• HDTM: manual rotation in either direction, lower cost than powered
• HDTP: AC motor and drive under the platform, bi-directional rotation standard
• HDTP speeds: 0-5 RPM standard or 0-10 RPM high speed
• Optional proximity sensors limit travel to +/- 2 degree accuracy
• Optional detents, locking pins and hard stops on manual models

Common Applications

• Heavy weldments and fabrications that must be turned between operations
• Large machine or die assembly
• Off-center or forklift-loaded parts that need high edge load ratings
• Automated cells needing precise indexing

How to Choose the Right Heavy Duty Ring Bearing Turntable

First decide manual or powered. HDTM is simpler and lower cost when the operator can turn the load. HDTP adds a motor and drive for heavy, frequent or automated rotation.

Then look at edge loading. Standard platforms (704-708) are rated 7000 lbs with edge loads that drop as the platform grows. Reinforced R models carry 10000 lbs with a 10000 lb edge rating. High speed H and HR models run at 0-10 RPM with a 5 HP motor and 5000 lb capacity.

Frequently Asked Questions

Why a ring bearing instead of a kingpin?

The ring bearing supports the platform over a wide diameter, which is how the reinforced models reach edge load ratings equal to full capacity.

What speeds are available on HDTP?

Standard speed is 0-5 RPM with a 3 HP motor. High speed is 0-10 RPM with a 5 HP motor.

Is DC power available?

No. Advance Lifts states AC motors and drives are standard and DC is not available.

What is the largest platform?

Reinforced models go up to 120 x 120 inches (HDTM-1010R and HDTP-1010R).

Can the platform stop at set angles?

Optional proximity sensors limit travel with +/- 2 degree accuracy. Precise position control is available on request.

Buying a heavy duty ring bearing turntable from B&C Industrial Products

B&C Industrial Products is a material handling distributor in Garrett, Indiana, serving customers nationwide. We stock and quote lift tables, lift carts, positioners, casters, pallet racking and cranes. Every Advance Lifts model on this page is quoted to your configuration, so tell us the load, the platform size and the working height you need and we will spec it.
